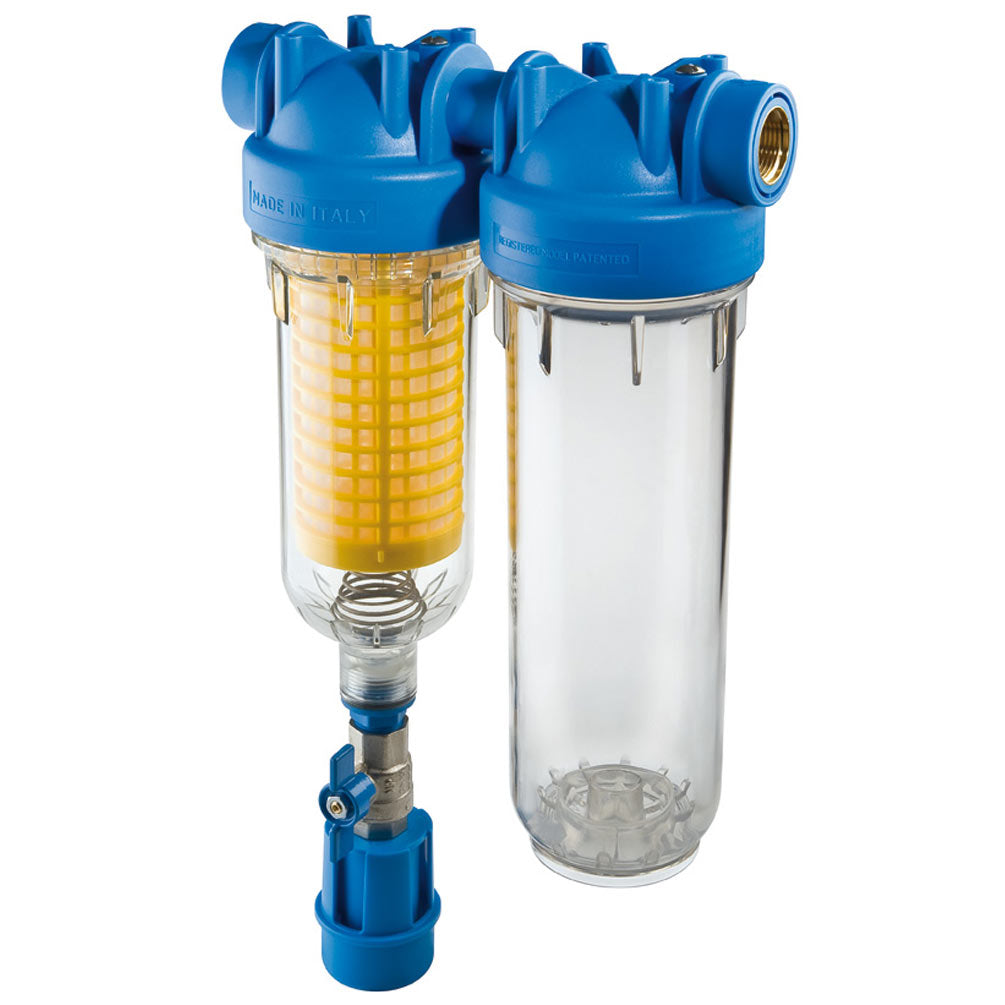

HYDRA Duo RLH 90 mcr - Backwash Filter Double Housing

HYDRA Duo RLH 90 mcr self-cleaning backwash filter and 10" filter housing in various connection sizes

Compact backwash filter for the filtration and treatment of drinking water, well water, household water, etc.

Innovative backwash system with spring-loaded filter cartridge. When the flush valve is opened, the pressure drop pulls the cartridge downward, thereby cleaning the inside as well. A minimum pressure of 1.8 bar is required to ensure backwashing.

Includes hose connector and drain funnel with backflow prevention in accordance with UNI EN 1717-11/2002

To automate the backwashing process, we recommend our K-Matic EAN 8021647389497 as an accessory
Matching 10" filter cartridges can be found in our shop.

Technical data

Suitable for drinking water applications
Dimensions: 390 x 120 x 107 mm (HxWxD)
Operating pressure: 1.8 - 8.0 bar
Temperature range: 4 - 45 °C
Recommended max. flow rate: 6000 l/h

Material selection

Housing head: reinforced polypropylene
Housing bowl: PET
O-ring: EPDM
Vent valve: stainless steel, EPDM
Connection thread: CW 617 N brass
Ball valve: CW 617 N nickel-plated brass, reinforced polypropylene
Drain funnel/hose connector: reinforced polypropylene

Areas of application:

Pre-filter
Appliance protection filter
Drinking water filter

You will receive a HYDRA Duo including backwash filter, drain set, wall bracket and housing wrench in the selected connection size.
