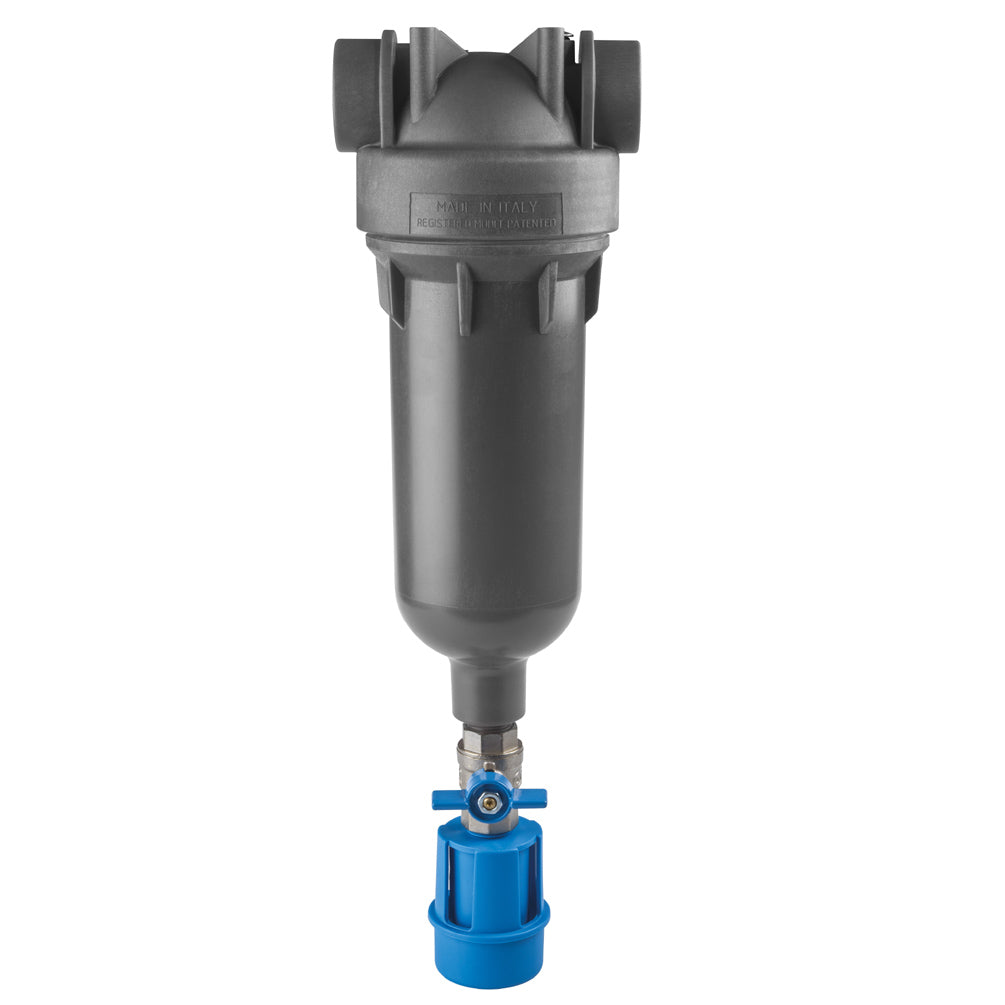

HYDRA Hot 1"RAH 90 mcr IN - Backwash filter hot water

HYDRA Hot 1" RAH 90 mcr IN self-cleaning backwash filter for hot water applications up to 80 C

Compact backwash filter for filtration and treatment of utility water, heating water, etc.

Innovative backwash system with spring-loaded filter cartridge. When the flushing valve is opened, the pressure drop causes the cartridge to be pulled downwards and thus also cleaned inside. A minimum pressure of 1.8 bar is necessary to ensure backwashing.

Includes hose nozzle and drain funnel with backflow protection according to UNI EN 1717-11/2002

To automate backwashing, we recommend our K-Matic EAN as an accessory 8021647389497

Technical data

Connection size: 1"
Dimensions: 390 x 120 x 107 mm (HxWxD)
Operating pressure: 1.8 - 8.0 bar
Temperature range: 4 - 80 C
Recommended max. flow rate: 6000 l/h

Material selection

Case head: reinforced nylon
Housing cup: reinforced nylon
O-ring: EPDM
Vent valve: stainless steel, EPDM
Ball valve: CW 617 N nickel-plated brass, reinforced polypropylene
Drain funnel/hose nozzle: reinforced polypropylene

Areas of application:

Pre-filter
Device protection filter

You will receive a HYDRA Hot backwash filter complete with filter cartridge, drain set, wall bracket and housing key in the selected connection size.
