HYDRA Ironmaster 1" - Iron Filter for Well Water, Home Water Filter

HYDRA Ironmaster 1” - iron filter for well water, house water filter

High-performance triple filter housing

Robust construction – efficient water treatment

The high-performance 3-stage filter housing ensures reliable and long-lasting water treatment. The system combines state-of-the-art filtration technologies for clean water with no odor or taste – ideal for drinking water, well water, and household water applications.

The iron filter cartridge reduces the iron concentration, hydrogen sulfide content, and the metallic taste and smell of the water, and helps normalize the water pH value. The filter uses hydrogen sulfide to oxidize Fe² to Fe³.

The activated carbon filter is made of compressed activated carbon and filters contaminants from the water such as chlorine, organic pollutants, light hydrocarbons, solvents, pesticides, insecticides, oils and aromas, taste impairments, odor impairments, fine particles, and suspended solids.

Water with too high an iron content is the main cause of wear in industrial systems and household appliances due to deposits of so-called "boiler scale". Iron salts damage textiles washed in such water and irritate the skin. In addition, excessive iron content in the water causes rust stains on sanitary fixtures.

The innovative backwashing system with spring-loaded filter cartridge. When the flush valve is opened, the pressure drop pulls the cartridge downward, cleaning the inside as well. A minimum pressure of 1.8 bar is required to ensure backwashing.

 Reduction of substances (max. applicable values)

• Iron: up to 4.0 mg/l usable

• Manganese: up to 0.1 mg/l usable

• Sulphite: up to 0.9 mg/l

• Oxide: up to 4.0 mg/l

• Chloride: up to 4.8 mg/l

• Silicates: up to 35.0 mg/l

Use & benefits

✔ Space-saving, 3-stage water treatment system
✔ Easy and quick installation
✔ Including hose connector and drain funnel
✔ Backflow prevention according to UNI EN 1717-11/2002
✔ Hydra Trio well water filter with integrated drain funnel
✔ Optimal protection of the drinking water supply

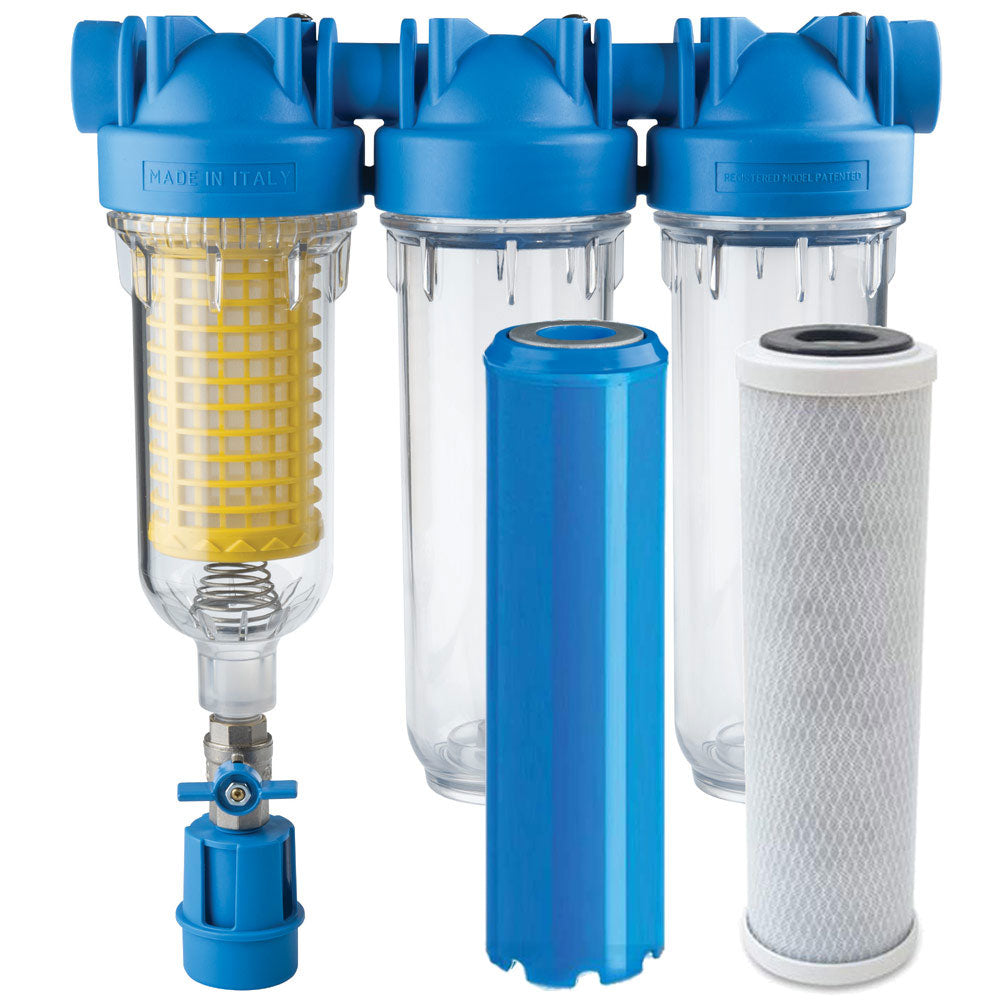

The individual filtration stages:

1 x RLH - pre-filtration cartridge - (EAN: 8021647070418)
Self-cleaning pre-filtration cartridge – RLH: 90 MIC
filters sand and other particles larger than 90 microns
Service life: approx. 12-24 months (depending on water quality and flow rate)

1 x PFEX iron removal filter (EAN: 4260303250830)
reduces the iron concentration, hydrogen sulfide content, metallic taste, and smell of the water and helps normalize the water pH value.
- Maximum temperature: up to 45 °C
- Service life: approx. 3 - 6 months (depending on water quality and flow rate - max. 4 mg/L FE² and 0.1 mg/l manganese)


Note: With PFEX iron removal filters, granulate dust may initially come out due to transport. Let the water run until it is clear. Please also observe the maximum values. If necessary, carry out a water analysis before installing the filter to determine the iron content of the water.


1 x CB activated carbon block (EAN: 4260303250106)
filters chlorine, organic pollutants, light hydrocarbons, solvents, pesticides, oils and aromas, taste impairments, odor impairments, fine particles (rust, limescale flakes, sand, scales), and suspended solids.
Service life: approx. 6 months (depending on water quality and flow rate)


You will receive the filter system in its original packaging, with filter housing, a housing wrench, a wall bracket, screws, and three filter cartridges.
