HYDRA Ironmaster 1" - Iron filter, well water filter, home water filter

HYDRA Ironmaster 1” - iron filter well water filter household water filter

Powerful triple filter housing

Robust construction – efficient water treatment

The powerful 3-stage filter housing provides reliable and long-lasting water treatment. The system combines state-of-the-art filtration technologies for clean, odor- and taste-neutral water – ideal for drinking, well, and household water applications.

The iron filter cartridge reduces iron concentration, hydrogen sulfide content, the metallic taste and odor of the water and helps normalize the water's pH level. The filter accomplishes this by oxidizing Fe² to Fe³ using hydrogen sulfide.

The activated carbon filter is made of compressed activated carbon and filters contaminants from the water such as chlorine, organic pollutants, light hydrocarbons, solvents, pesticides, insecticides, oils and flavors, taste impairments, odor impairments, fine particles and suspended solids.

Water with excessively high iron content is a primary cause of wear on industrial equipment and household appliances due to deposits known as "scale". Iron salts damage textiles washed in such water and can irritate the skin. Additionally, high iron content in water leads to the formation of rust stains on sanitary fixtures.

The innovative backwash system with spring-mounted filter cartridge. When the flush valve is opened, the pressure drop pulls the cartridge downward and cleans it internally. A minimum pressure of 1.8 bar is required to ensure backwashing.

Reduction of substances (max. operating values)

• Iron: usable up to 4.0 mg/l

• Manganese: usable up to 0.1 mg/l

• Sulfite: up to 0.9 mg/l

• Oxide: up to 4.0 mg/l

• Chloride: up to 4.8 mg/l

• Silicates: up to 35.0 mg/l

Usage & benefits

✔ Space-saving, 3-stage water treatment system
✔ Easy and quick installation
✔ Includes hose nozzle and drain funnel
✔ Backflow protection according to UNI EN 1717-11/2002
✔ Hydra Trio well water filter with integrated drain funnel
✔ Optimal protection of the drinking water supply

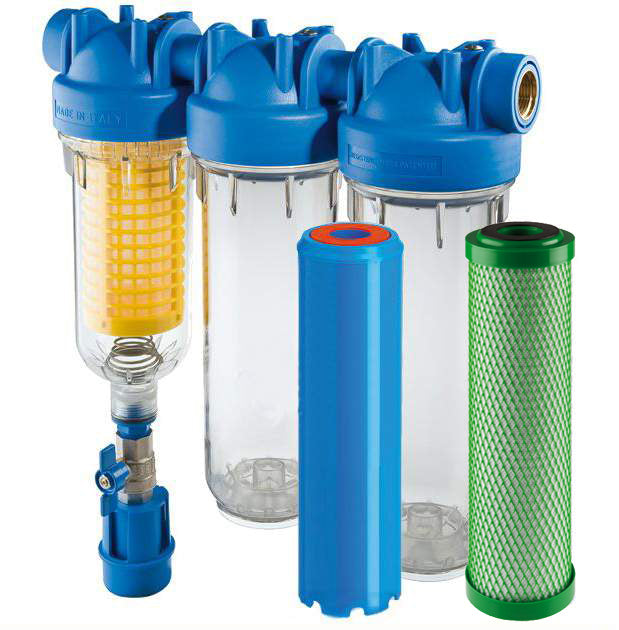

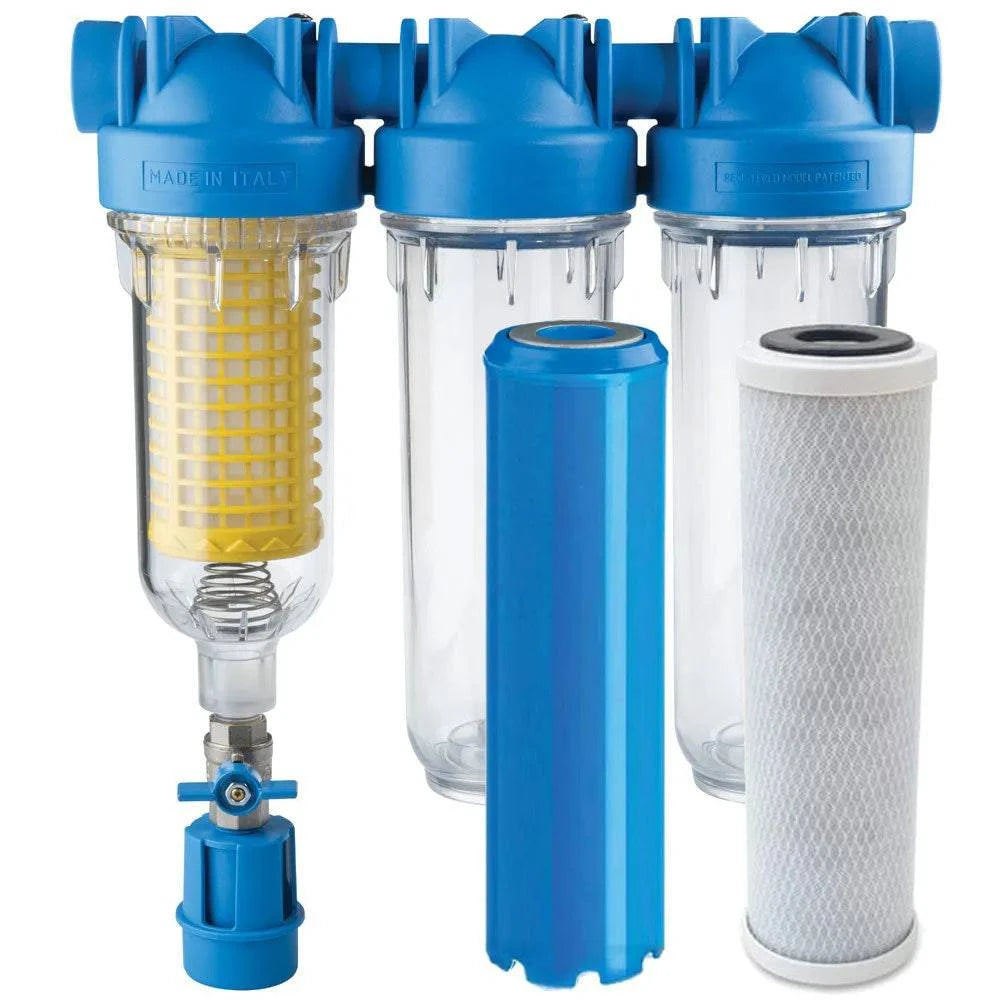

The individual filtration stages:

1 x RLH - prefiltration cartridge - (EAN: 8021647070418)
Self-cleaning prefiltration cartridge – RLH: 90 MIC
filters sand and other particles larger than 90 microns
Lifespan: approx. 12–24 months (depending on water quality and flow rate)

1 x PFEX Iron iron filter (EAN: 4260303250830)
reduces iron concentration, hydrogen sulfide content, the metallic taste, and the odor of the water and helps normalize the water's pH value.
Lifespan: approx. 6 months or approx. 3,000 ltr. (depending on iron (max. 4 mg/l) and manganese levels (max. 0.1 mg/l) and flow rate)

Note: With PFEX deironing filters, granulate dust may initially be released due to transport. Let the water run until it is clear. Also observe the maximum values. If necessary, perform a water analysis before installing the filter to determine the iron level of the water.


1 x CB activated carbon block (EAN: 4260303250106)
filters chlorine, organic pollutants, light hydrocarbons, solvents, pesticides, oils and flavors, taste impairments, odor impairments, fine particles (rust, lime flakes, sand, flakes) and suspended solids.
Lifespan: approx. 6 months (depending on water quality and flow rate)


You will receive the filter system in original packaging, with filter housing, a housing wrench, a wall mount, screws and three filter cartridges.
