HYDRA BIG 10 TRIO 1" RLH 90 mcr IN

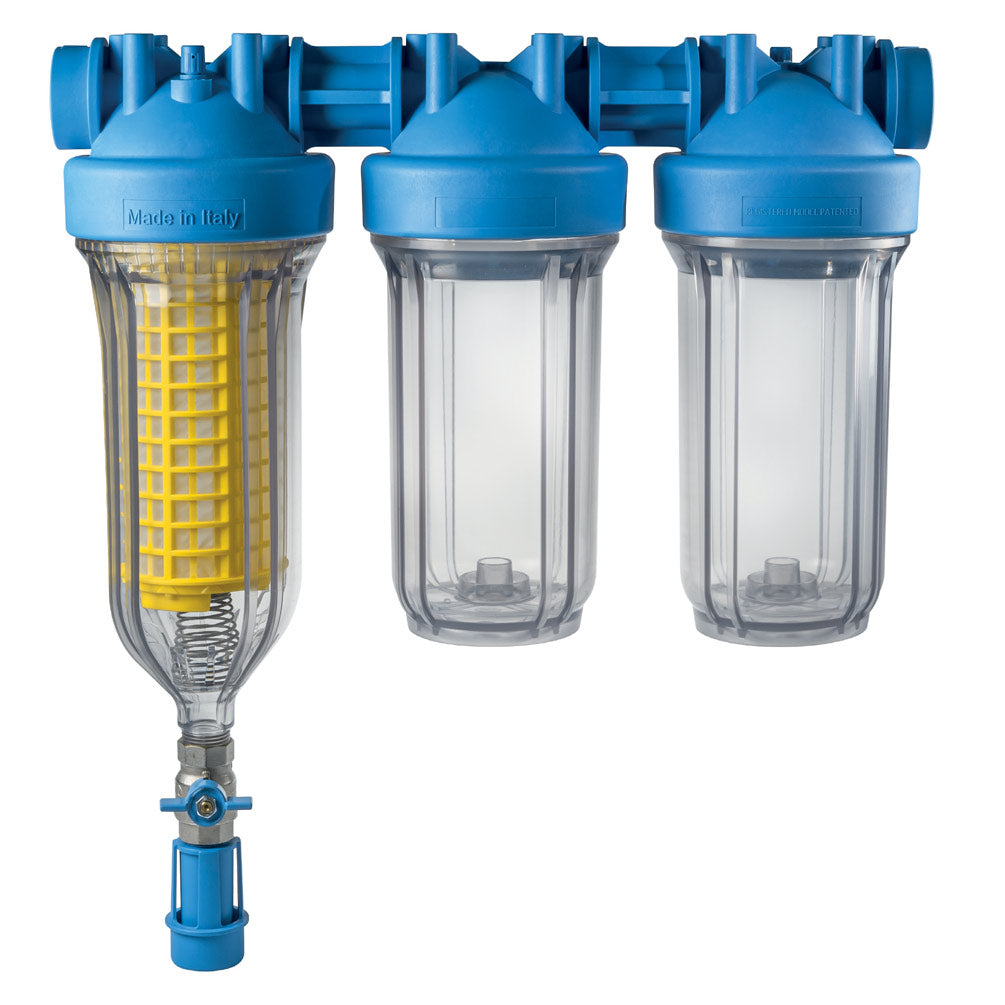

HYDRA BIG 10 TRIO 1" inch - Three-stage filter 10" inch housing

TRIPLE-filter housing - The housing head is cast in one piece! "PATENTED"

Innovative backwash system with spring-loaded filter cartridge: when the flush valve is opened, the cartridge is pulled downward by the pressure drop and is therefore cleaned from the inside as well. A minimum pressure of 1.8 bar is required to ensure backwashing.

In the next two stages, BIG 10" (DOE) cartridges are used to further refine filtration or continue water treatment.

Includes hose connector and drain funnel with backflow protection according to UNI EN 1717-11/2002

This works through the Self-Cleaning/Backwash pre-filter with 90 micron and with final water treatment through a second and third filter cartridge of your choice , which you can order separately in our shop.

One of the best POINT OF ENTRY home filtration systems on the market, filter your drinking water without pressure loss.

The HYDRA BIG TRIO water filter was developed to deliver high water flow with low pressure loss. The 3-stage water treatment system is designed to save a lot of space and is easy to install.

The HYDRA BIG TRIO water filter has a drain funnel/backflow protection to protect the drinking water supply.

Use: Filtration and treatment of drinking water, well water, household water and wastewater, water tanks and other technical systems, as well as pipework.

Filtration:

1 x RLH - pre-filtration cartridge RLH: 90 MIC , filters sand and other particles larger than 90 microns
Service life: 12-24 months
Max. flow rate at approx. 3 Bar pressure / 6000l/h.

as well as two additional 10" BIG filter cartridges of your choice.

Order these now in our shop and save on shipping costs.

The filter system is originally packaged, with filter housing a housing wrench, a wall bracket, screws and a RLH 90 µm filter cartridge.
