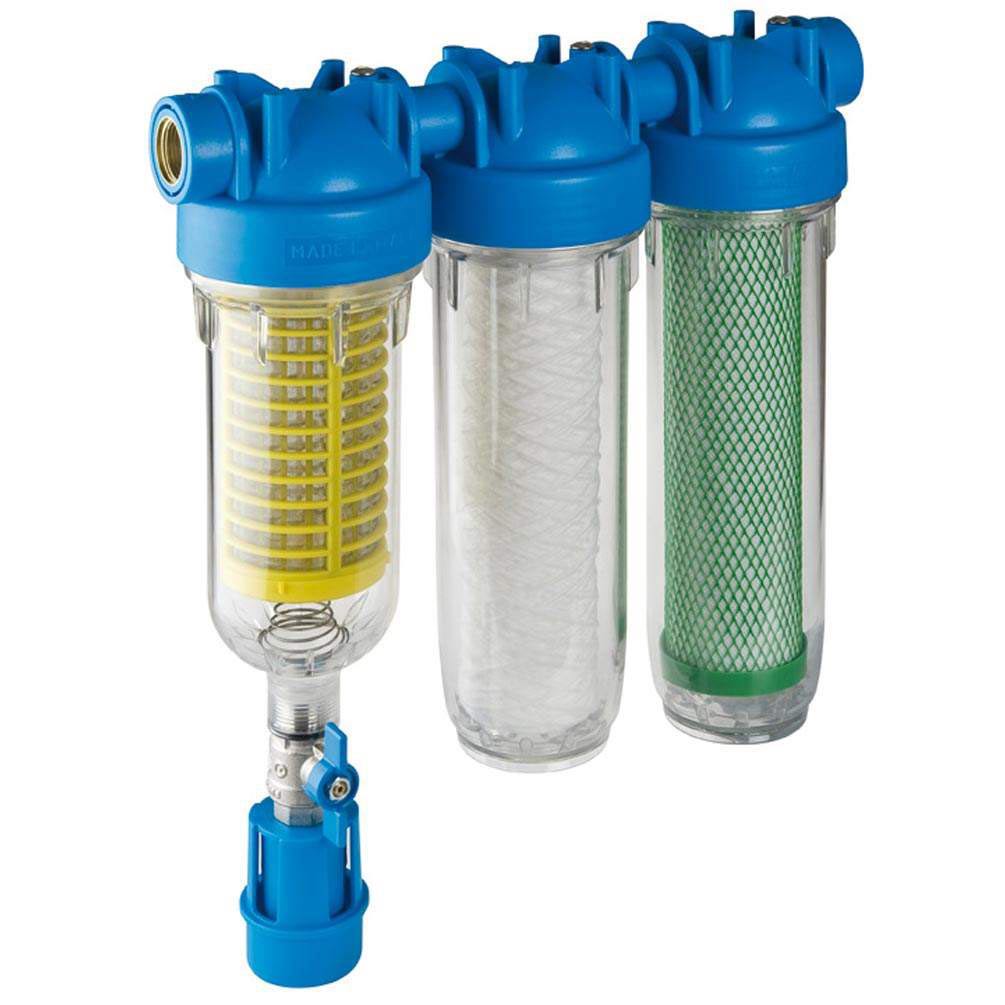

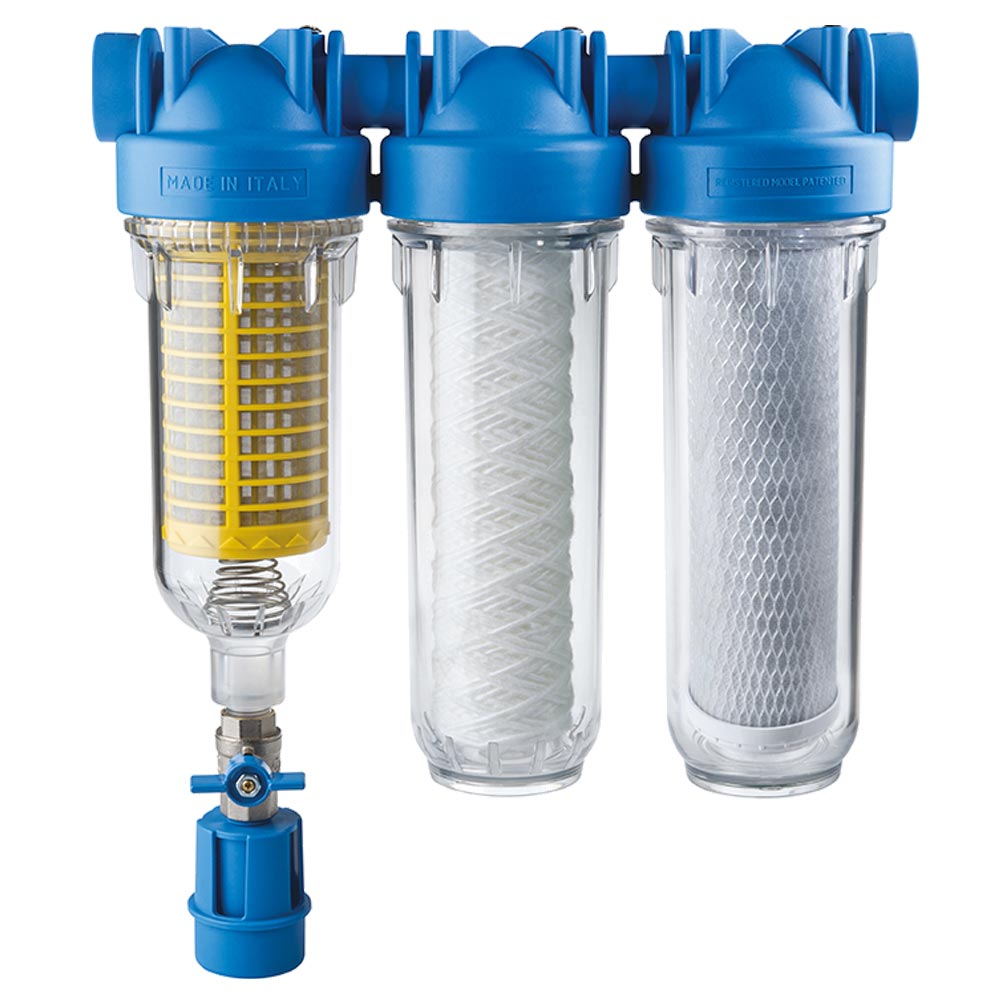

HYDRA Rainmaster Trio RLH CB 3/4" Household Water Filter Well Water Filter

TRIPLE filter housing with one-piece head

This filtration system treats water at a high concentration cost-effectively and filters out contaminants as well as fine particles from the water.

Innovative backwash system with spring-mounted filter cartridge. When the flush valve is opened, the cartridge is pulled down by the pressure drop, thereby also cleaning the inside. A minimum pressure of 1.8 bar is required to ensure backflushing.

Including hose nozzle and drain funnel with backflow protection according to UNI EN 1717-11/2002

This works through the self-cleaning/backwash pre-filter with 90 microns, a pre-filter with 25 microns, and a final water treatment CB CARBON cartridge.

The CB carbon block activated carbon filter is made of compressed activated carbon and filters contaminants from the water such as chlorine, organic pollutants, light hydrocarbons, solvents, pesticides, insecticides, oils and flavors, taste impairments, odor impairments, fine particles (rust, lime flakes, sand, flakes) and suspended solids.



The filter cleans the water to 10 microns.



Usage, Scope, Dimensions:

The 3-stage water treatment system is designed to be very space-saving and easy to install.

The HYDRA Rainmaster TRIO fountain water filter features a drain funnel/backflow preventer to protect the drinking water supply.

The well water filter can produce clear water and makes the use of well water in the household possible.

It is used for the filtration and treatment of drinking water, well water, household water, wastewater, and serves to protect fittings, boilers, pumps, water tanks, washing machines, and other technical systems as well as the pipelines.

Filter dimensions:

Height 390 mm Width 336 mm Depth 107 mm

IN / OUT connection made of brass in 3/4" inch:

Maximum pressure: 8.0 bar

Minimal pressure: 1.8 bar

Maximum temperature: 45 °C



The individual filtration stages:

1 x RLH - Pre-filtration Cartridge (Art.-No. 8021647070418)

Self-cleaning pre-filtration cartridge RLH with plastic mesh 90 MIC, filters sand and other particles larger than 90 microns.

Lifespan: approx. 12-24 months



1 x FA Filtration Cartridge 25 Micron (Art.-No. 4260303250120)

filter fine particles (sand, rust, flakes)

Lifespan: approx. 6 months (depending on water quality and flow rate)



1 x CB - CARBON Cartridge Activated Carbon 10 Micron (Art.-Nr. 4260303250106)

filters fine particles (rust, lime, sand, flakes) as well as contaminants (pesticides, solvents, etc.), reduces chlorine (bad taste and odor)

Lifespan: approx. 6 months (depending on water quality and flow rate)



The filter system is originally packaged, with filter housing, a housing key, a wall mount, screws, and filter cartridges.
