HYDRA TRIO Scalemaster 1" - Anti-scale water filter

HYDRA TRIO Scalemaster 1” - Anti-Scale Water Filter

HIGH-PERFORMANCE TRIPLE filter housing with a one-piece head

The scale water filter CPP 10 ScaleArmor™ used is the IAPMO/ANSI Z601-certified solution for effectively protecting your home from limescale. This filter prevents limescale formation with effectiveness of up to 86% and ensures limescale-free water, extending the lifespan of your appliances and being gentle on your skin and hair.

This works thanks to the self-cleaning/backwash pre-filter with 90 micron, an innovative backwash system with spring-loaded filter cartridge, which, when the flush valve is opened, is pulled downward by the pressure drop and therefore also cleaned on the inside. A minimum pressure of 1.8 bar is required to ensure backwashing. A CPP 10 ScaleArmor™ - 5 mcr anti-scale filter cartridge and a final water treatment of the activated carbon block cartridge.

The exclusive certified material contained in ScaleArmor™ prevents the formation of limescale deposits by inhibiting one or more of the processes that determine their growth. This process stops the growth of calcium and magnesium carbonate crystals and helps keep pipes and surfaces cleaner while reducing corrosion.

The PCB activated carbon block 10 inch 10 mcr is made of compressed activated carbon and filters contaminants from the water such as chlorine, organic pollutants, light hydrocarbons, solvents, pesticides, insecticides, oils and odors, taste impairment, odor impairment, fine particles (rust, limescale flakes, sand, scale) and suspended matter.

Use:

The 3-stage water treatment system is designed to save space and is easy to install.

The HYDRA TRIO household water filter features a drain funnel/backflow preventer, to protect the drinking water supply in accordance with UNI EN 1717-11/2002.

The HYDRA TRIO is used for filtration and treatment of drinking water, household water and wastewater, and serves to protect fittings, pumps, water tanks and other technical systems as well as pipework.

Technical data

HYDRA TRIO Scalemaster
Dimensions: height 390 mm width 336 mm depth 107 mm
Operating pressure: min 1.8 bar / max 8.0 bar
Temperature range: 4 - 45 °C
Maximum total hardness: 28°dH
Suitable for drinking water applications

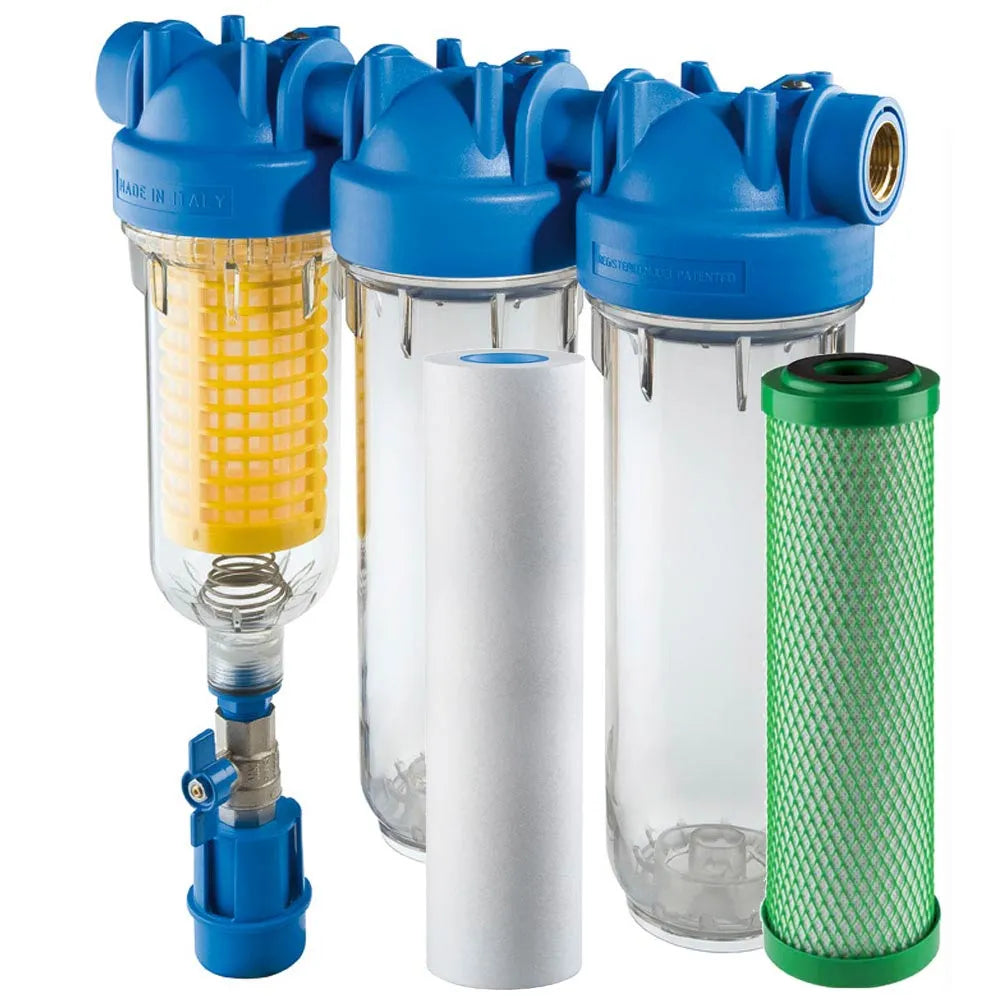

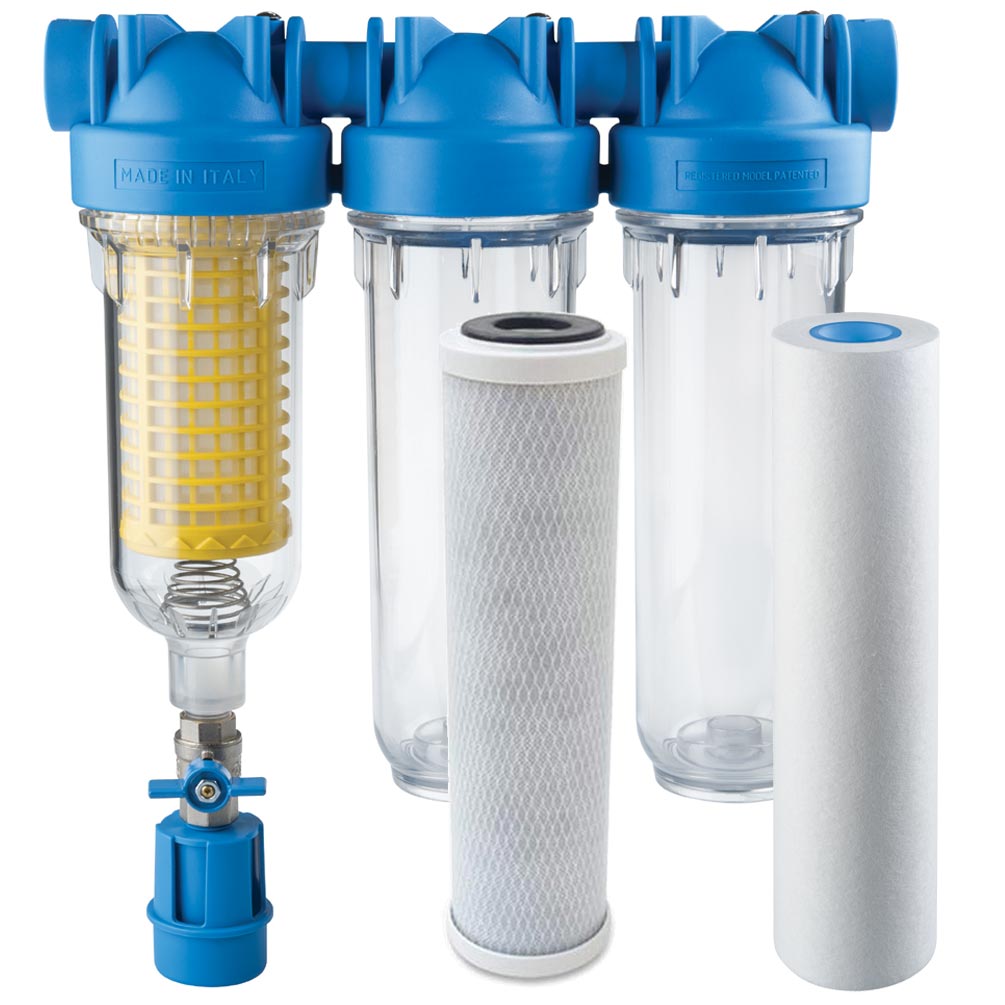

The individual filtration stages:

1 x RLH 90mcr HYDRA - Sediment Filter Polyester Mesh
Self-cleaning pre-filtration cartridge – RLH: 90 MIC
filters sand and other particles larger than 90 microns
Service life: approx. 12-24 months (depending on water quality and flow rate)

1 x PCB activated carbon block 10 inch 10 mcr
filters chlorine, org. pollutants, light hydrocarbons, solvents, pesticides, oils and odors, taste impairment, odor impairment, fine particles (rust, limescale flakes, sand, scale) and suspended matter.
Service life: approx. 6 months (depending on water quality and flow rate)


1 x CPP 10 ScaleArmor 5 mcr - Anti-Scale Filter

Prevents limescale formation, reduces deposits by up to 86%, protects against corrosion and retains sediment: CPP ScaleArmor™ is the perfect solution for tap water.

CPP10 inch ScaleArmor™ is the cartridge of the ScaleArmor™ Blues system and perfectly fulfills the dual task of preventing limescale deposits and removing sediment with a filtration rating of 5 microns. Its effectiveness is ensured by the structure and materials of the cartridge: a meltblown polypropylene filter septum and a core filled with the unique ScaleArmor™ anti-scale material. Service life: approx. 6 months (depending on water quality and flow rate)

The filter system comes in its original packaging, with filter housing, a housing wrench, a wall bracket, screws and three filter cartridges.
