HYDRA TRIO Scalemaster 1" - Anti-Limescale Water Filter

HYDRA TRIO Scalemaster 1” - Anti-Scale Water Filter

HIGH-PERFORMANCE TRIPLE filter housing with one-piece head

The scale water filter CPP 10 ScaleArmor™ used is the IAPMO/ANSI Z601 certified solution for effectively protecting your home against limescale. This filter prevents limescale formation with an effectiveness of up to 86% and ensures scale-free water that extends the service life of your appliances and is gentle on your skin and hair.

This works thanks to the Self-Cleaning/Backwash pre-filter with 90 micron, an innovative backwash system with spring-loaded filter cartridge, which, when the flush valve is opened, is pulled downward by the pressure drop and is therefore cleaned on the inside as well. A minimum pressure of 1.8 bar is required to ensure backwashing. A CPP 10 ScaleArmor™ - 5 mcr Anti-Scale Filter Cartridge and a final water treatment of the activated carbon block cartridge.

The exclusive certified material contained in ScaleArmor™ prevents the formation of limescale deposits by inhibiting one or more of the processes that determine their growth. This process stops the growth of calcium and magnesium carbonate crystals and helps keep pipes and surfaces cleaner while reducing corrosion.

The PCB activated carbon block 10 inch 10 mcr is made of compressed activated carbon and filters pollutants from the water such as chlorine, organic pollutants, light hydrocarbons, solvents, pesticides, insecticides, oils and aromas, taste impairments, odor impairments, fine particles (rust, limescale flakes, sand, scale) and suspended matter.

Use:

The 3-stage water treatment system is designed to save a lot of space and is easy to install.

The HYDRA TRIO domestic water filter has a drain funnel/backflow preventer, to protect the drinking water supply in accordance with UNI EN 1717-11/2002.

The HYDRA TRIO is used for filtration and treatment of drinking water, domestic water and wastewater, and serves to protect fittings, pumps, water tanks and other technical installations as well as the piping.

Technical data

HYDRA TRIO Scalemaster
Dimensions: height 390 mm width 336 mm depth 107 mm
Operating pressure: min 1.8 bar / max 8.0 bar
Temperature range: 4 - 45 °C
Maximum total hardness: 28°dH
Suitable for drinking water applications

The individual filtration stages:

1 x RLH 90mcr HYDRA - Sediment Filter Polyesternet
Self-cleaning pre-filtration cartridge – RLH: 90 MIC
filters sand and other particles larger than 90 microns
Service life: approx. 12-24 months (depending on water quality and flow rate)

1 x PCB activated carbon block 10 inch 10 mcr
filters chlorine, org. pollutants, light hydrocarbons, solvents, pesticides, oils and aromas, taste impairments, odor impairments, fine particles (rust, limescale flakes, sand, scale) and suspended matter.
Service life: approx. 6 months (depending on water quality and flow rate)


1 x CPP 10 ScaleArmor 5 mcr - Anti-Scale Filter

Prevents limescale formation, reduces deposits by up to 86%, protects against corrosion and retains sediment: CPP ScaleArmor™ is the perfect solution for tap water.

CPP10 inch ScaleArmor™ is the cartridge for the ScaleArmor™ Blues system and perfectly fulfills the dual task of preventing limescale deposits and removing sediment with a filtration rating of 5 microns. The effectiveness is ensured by the structure and materials of the cartridge: a meltblown filter septum made of polypropylene and a core filled with the unique ScaleArmor™ anti-scale material.  Service life: approx. 6 months (depending on water quality and flow rate)

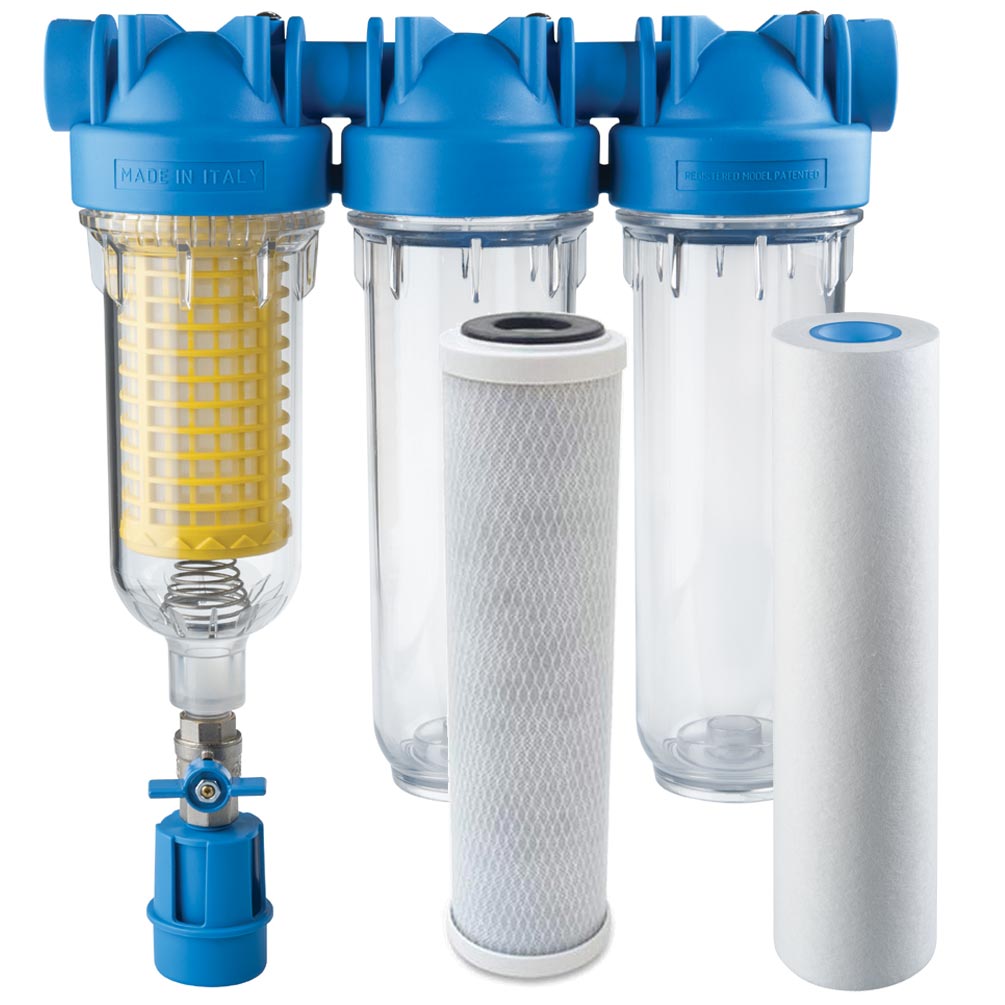

The filter system is factory sealed, with filter housing, a housing wrench, a wall bracket, screws and three filter cartridges.
