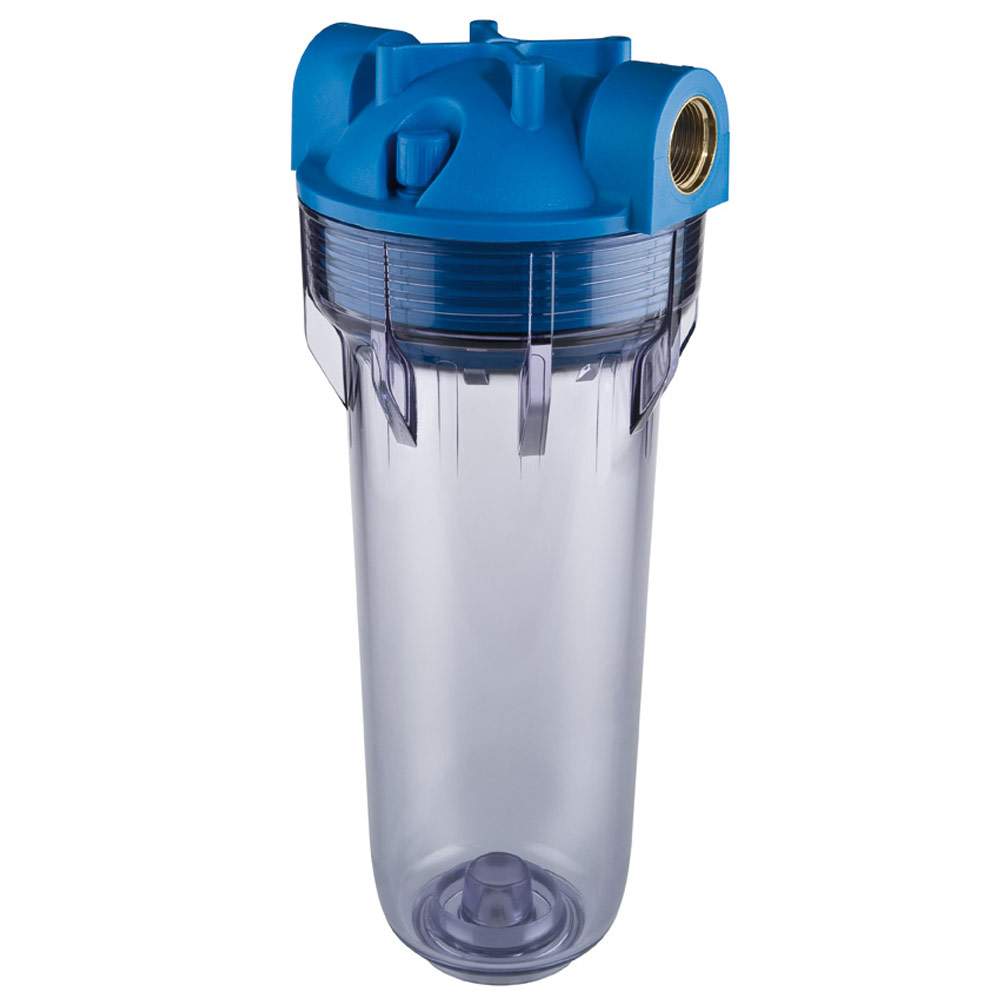

Senior Plus 2P AFO SX AS 3/4"- single filter housing

Senior Plus 2P AFO SX AS 3/4" - single filter housing made of polypropylene and SAN

Compact and robust filter housing for filtration and treatment of drinking water, well water, domestic water, etc.

You can find suitable 10" SX filter cartridges in our shop.

We recommend the following accessories:
W1 - Wall bracket EAN 8021647102089
U1 - Housing key EAN 8021647098320

Technical data

10" filter housing
Suitable for all standard 10" cartridges with flat seals
Suitable for drinking water applications
Connection size: 3/4" internal thread
Dimensions: 315 x 133 x 130 mm (HxWxD)
Operating pressure: maximum 8.0 bar
Temperature range: 4 - 45 CC

Material selection

Housing head: reinforced polypropylene
Housing cup: SAN
O-ring: EPDM
Vent valve: stainless steel, EPDM
Connection thread: CW 617 N brass

Areas of application:

Pre-filter
Device protection filter
Drinking water filter

You will receive a 10" filter housing.
