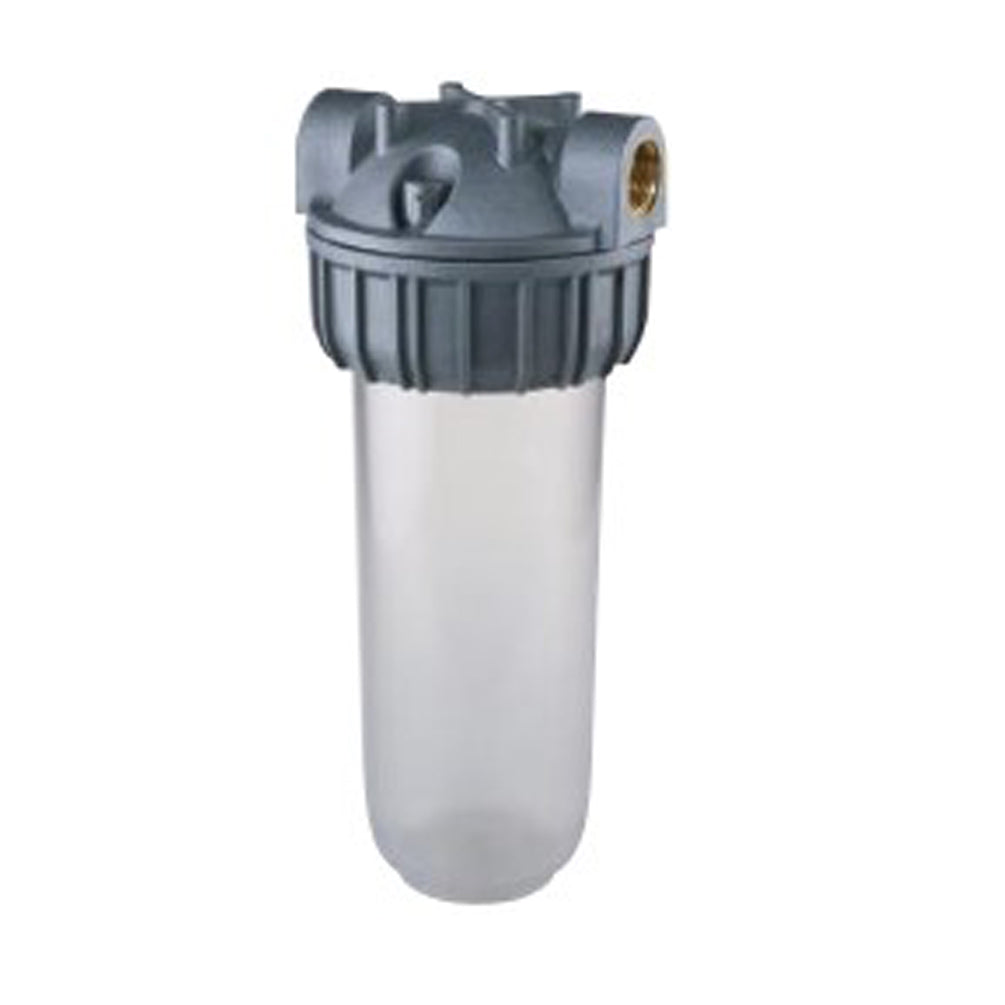

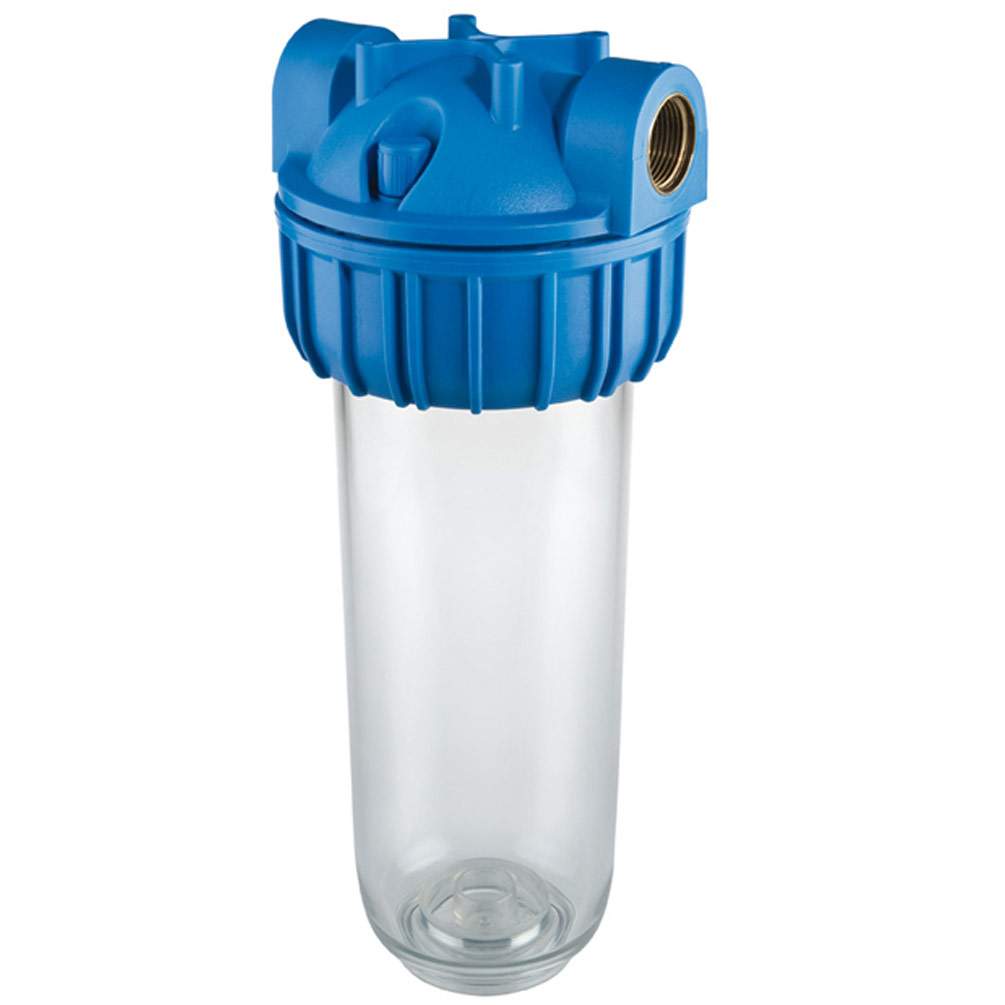

Senior Plus 3P SX TS - Single Filter Housing

Senior Plus 3P SX TS single filter housing made of polypropylene in various connection sizes and versions

Compact and robust filter housing for filtering and treating drinking water, well water, domestic water, etc.

Suitable 10" SX filter cartridges can be found in our shop.

As accessories, we recommend:
W1 - wall bracket EAN 8021647102089
U1 - housing wrench EAN 8021647098320

Technical data

10" filter housing
Suitable for all standard 10" cartridges with flat seal
Suitable for drinking water applications
Dimensions up to 3/4": 321 x 133 x 130 mm (HxWxD)
Dimensions 1": 321 x 145 x 130 mm (HxWxD)
Operating pressure: maximum 8,0 bar
Temperature range: 4 - 45 °C

Material selection

Housing head: reinforced polypropylene
Housing bowl: PET
O-ring: EPDM
Bleed valve: stainless steel, EPDM
Connection thread: CW 617 N brass

Areas of application:

Pre-filter
Appliance protection filter
Drinking water filter

You will receive a 10" filter housing in the selected connection size and version.
