Home / Products / Senior Plus HOT 3P 1"BFP SX AB - Single filter housing hot water
Quick view
Quick view
€58,75
Tax included. Shipping calculated at checkout.
View full details Link chevron
List Description
Settings TECHNICAL DATA
Information AREAS OF APPLICATION & INFORMATION
Address pin Manufacturer (GPSR)

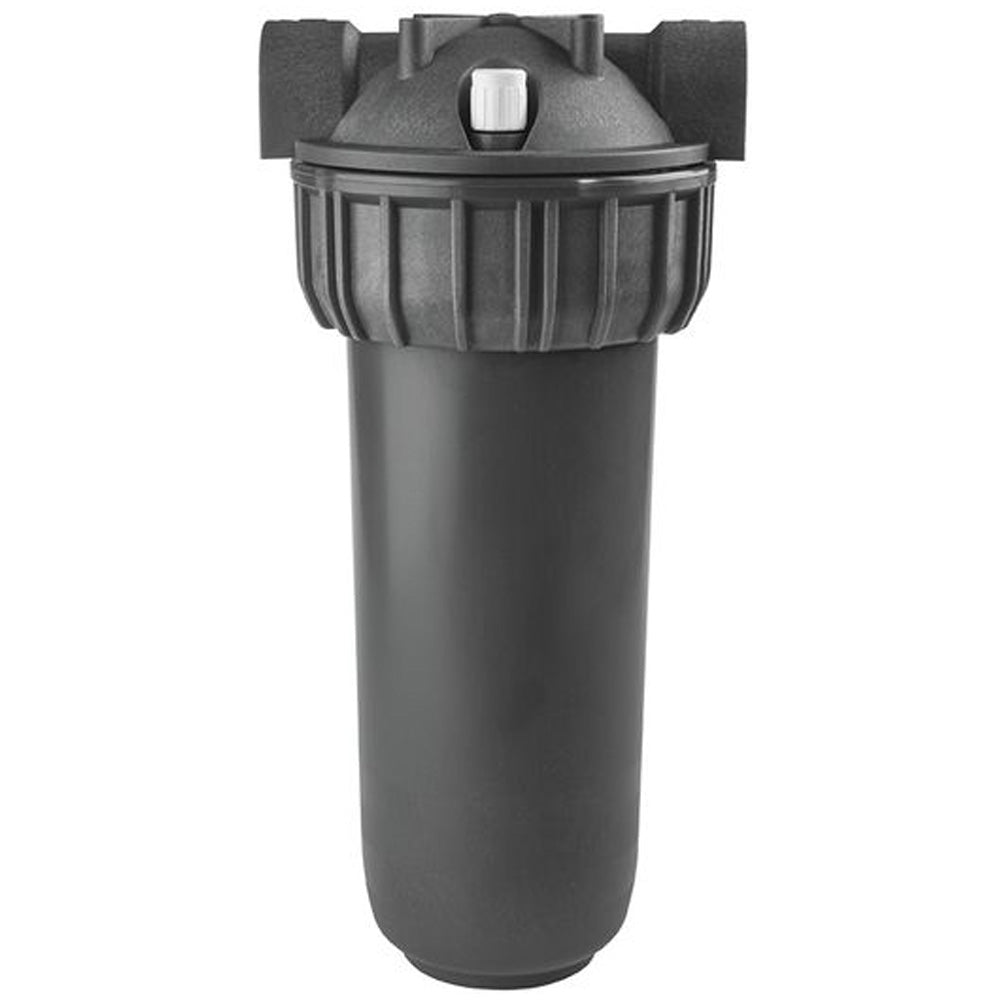

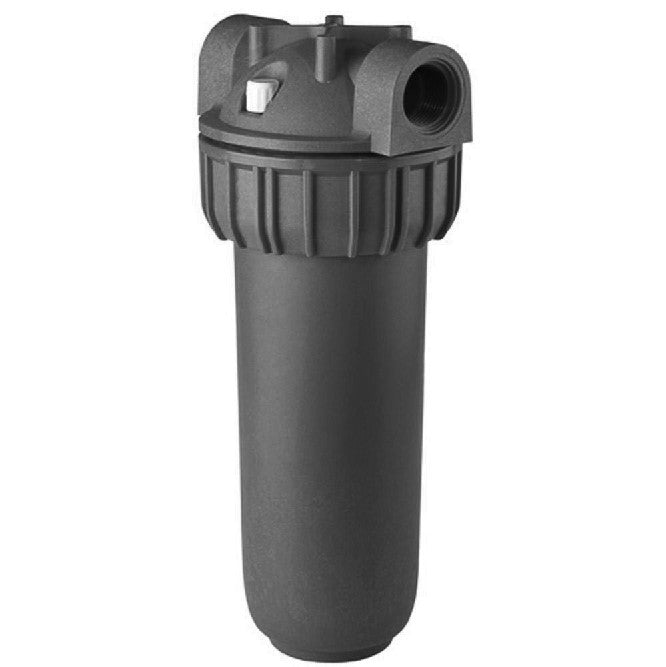

Senior Plus HOT 3P 1" BFP SX AB single filter housing for hot water applications up to 80 CC

Robust filter housing for filtration and treatment of utility water, heating water, etc.

You can find suitable 10" Hot SX filter cartridges in our shop.

We recommend the following accessories:
W1 - Wall bracket EAN 8021647102089
U1 - Housing key EAN 8021647098320



Technical data

10" filter housing
Suitable for all standard 10" cartridges with flat seals
Connection size: 1" internal thread
Dimensions: 321 x 145 x 130 mm (HxWxD)
Operating pressure: maximum 8.0 bar
Temperature range: 4 - 45 CC

Material selection

Case head: reinforced nylon
Housing cup: reinforced nylon
O-ring: EPDM
Vent valve: Polypropylene, EPDM



Areas of application:

Pre-filter
Device protection filter



You will receive a 10" filter housing hot.
