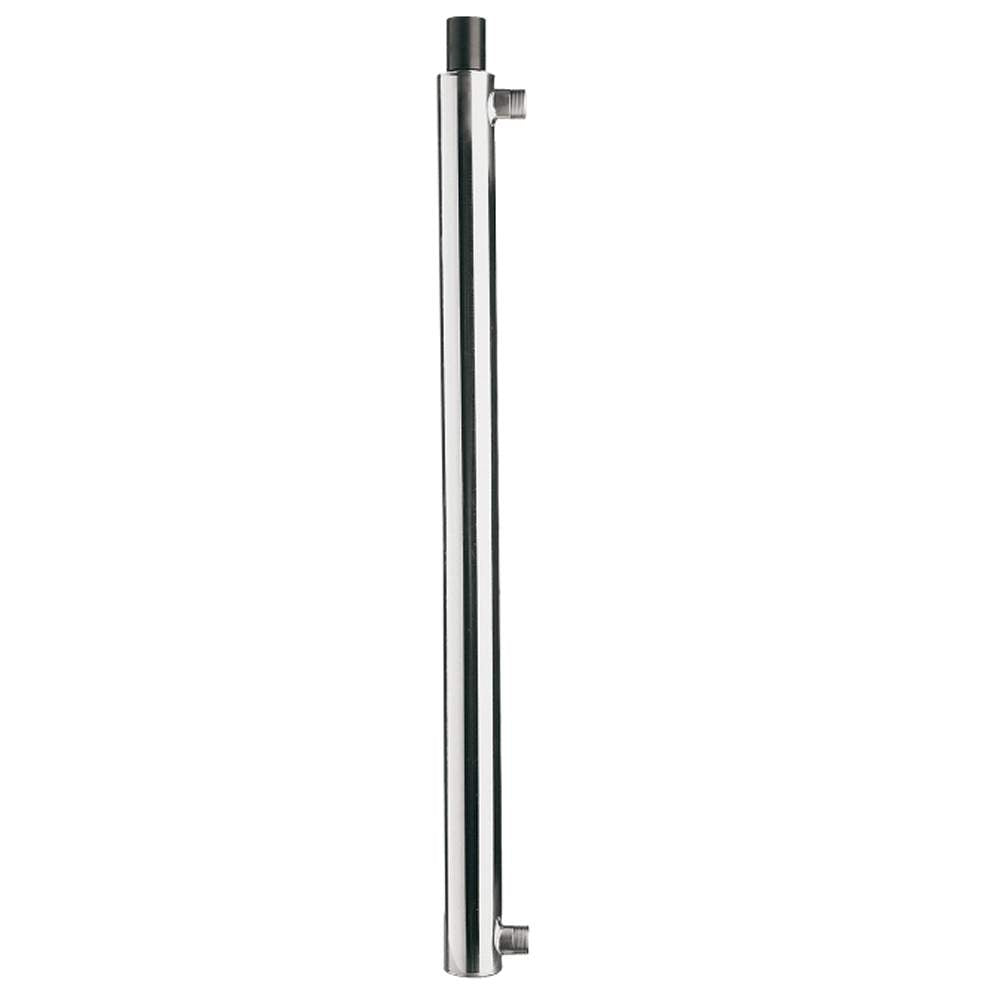

UV water filter water disinfection system UV 412 LCD
EAN: 4260303253060
€595,00
Tax included. Shipping calculated at checkout.
USER MANUAL Water disinfection system UV 412 LCD AS PDF UV 412 LCD Water Disinfection System / UV Disinfection Units
The SITA UV disinfection unit is a powerful solution for effective and reliable drinking water treatment.
Made in Italy by SITA UVthe system impresses with high-quality workmanship and excellent weld quality.
It can be mounted both horizontally and vertically — we recommend vertical installation, as maintenance is particularly easy that way.
Drinking water naturally contains bacteria. Most are harmless, but some microorganisms can multiply significantly under certain conditions and endanger human health.
With only a few seconds of UV exposure, germs, bacteria, viruses and algae are reliably killed — completely without chemicals.
The UV water disinfection kills 99.99% of all viruses and bacteria without the use of chemicals.
The LCD DISPLAY showsthe lamp service life, and allows reading of possible faults and alarm messages.
The unit is suitable for drinking water capacities up to 2,700 liters per hour.
Efficient, safe and chemical-free water disinfection.
Technical data:
- Model: UV 412 LCD
- Water flow rate: 2.700 l/h drinking water
- UVC transmission: 99% - 1cm
- Water temperature: 5°C to 50°C
- Reactor: Stainless steel AISI 304
- Connection external thread: 1" M
- Dimensions L x Ø: 925 x 88 mm
- Flange distance: 816 mm
- Weight: 2.5 kg
- Lamp service life: 9,000 hours
- Number of UV lamps: 1
- I RAYS dose: 300J/m²
- Max. operating pressure: 10 bar
- Enclosure protection rating: IP 55
- Electrical connection: 230V - 50/60 Hz
- Power: 44W
- Mains plug with cable length: 100cm

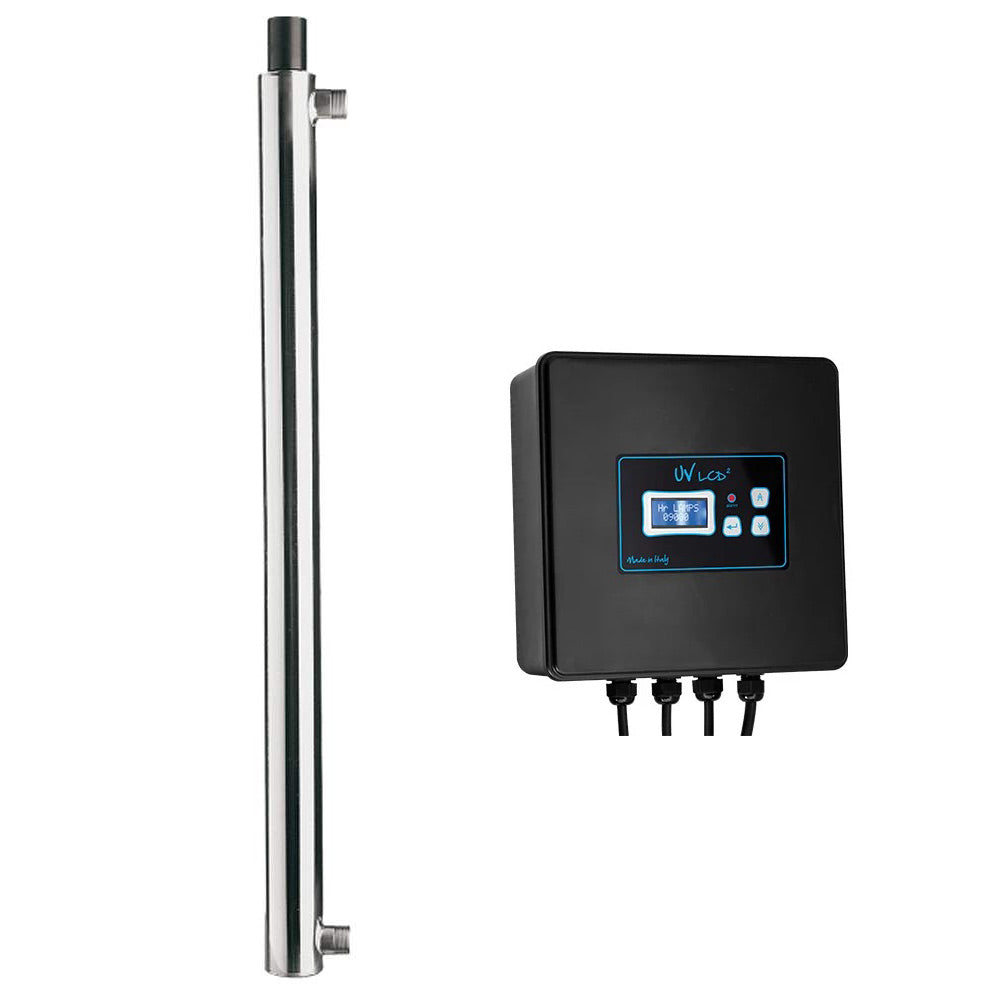

Ultraviolet UV 412 LCD - 300J/m² water disinfection system with LCD panel (display of lamp service life, faults, LED alarm)

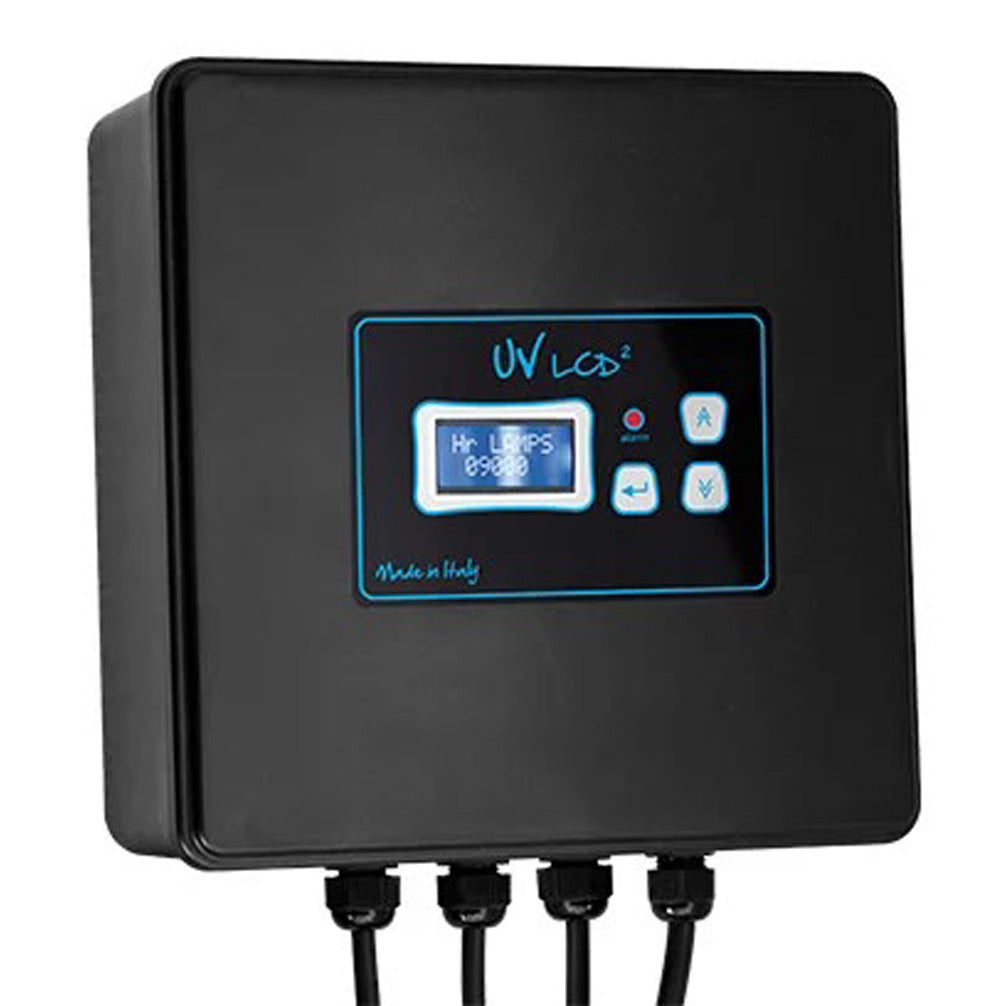

LCD DISPLAY:
- Model: LCD
- Material and color: Polypropylene, Black
- Dimensions (H x W x D): 215 x 215 x 90 mm
- Enclosure protection rating: IP 55
- Water temperature: 5°C to 45°C
- Electrical connection: 230V - 50/60 Hz
- Mains plug with cable length: 100cm
- Monitor display: LCD SITA
- Hour counter: Yes, for total service life
- Resettable hour counter: Yes, for lamp service life
- Lamp function monitoring: Yes
- LED alarm: Yes
- Free contact (NO-NC): Yes, general alarm (max. 2 A)
- 230 V output (NO - NC): Yes, general alarm (max. 2 A)
You will receive a UV 412 LCD water disinfection system packaged in a carton.
