DP 10 Duo PFEX FA CA 5 mcr - combination filter iron filter filled with two filter media to reduce the iron concentration in the water

The PFEX iron filter cartridge lowers the iron concentration, the hydrogen sulfide content, reduces the metallic taste and odor of the water.

The FE² dissolved in the water is converted to FE³ and removed from the water by the PFEX filter. The PFEX filter uses hydrogen sulfide, in which Fe² is oxidized to Fe³.

Reduction of:
iron (can be used up to a maximum value of 4.0 mg/l)
manganese (can be used up to a maximum value of 0.1 mg/l)
Sulfite (up to 0.9 mg/l)
Oxide (up to 4.0mg/l)
Chloride (up to 4.8 mg/l)
Silicates (up to 35.0 mg/l)


Water iron removal cartridges are filled with fine-grain granules to remove iron ions from the water.

The cartridges should not be used with microbiologically contaminated water or with water of unknown origin.

Helps normalize the pH value in water.

- Iron ion treatment

- Odor impairment and fine particles

- The filter also removes light oils

Recommended flow rate at approx. 3 bar pressure / 1000 l/h.

10" inch double filter housing:
Height 325 mm Width 228 mm Depth 107 mm

IN / OUT connection made of brass in 3/4 inch
Maximum pressure: 8.0 bar

Maximum temperature: up to 45 C

FILTRATION:

1 x FA 10 CA SX with activated carbon granules 5 microns (EAN 4260303250014)

- Filtration of fine particles (rust, lime flakes, sand, scales)
- Reduction of chlorine (bad taste and smell)
- Harmful substances (pesticides, solvents, etc.)
- Lifespan: approx. 3 - 6 months (depending on water quality and flow rate)
- 10" inch filter dimensions: 250 x 70 x 30 mm

Maximum temperature: up to 45 C

1 x PFEX iron filter cartridge to reduce iron concentration: (EAN 4260303250830)

- Iron ion treatment
- Odor impairment and fine particles
- The filter also removes light oils
- Lifespan: approx. 4 - 8 months or approx. 3,000 l (depending on the iron (max. 4 mg/l) and manganese values ​​(max. 0.1 mg/l) and the flow rate)
- 10" inch filter dimensions: 248 x 70 x 26 mm

Maximum temperature: up to 45 C

!With the PFEX iron removal filters, it can happen that granulate dust initially escapes, which is caused by transport. Let the water run until the water is clear. If applicable. Only use the following filters afterwards!

PLEASE NOTE THE MAXIMUM VALUES. PERFORM if necessary. DO A WATER ANALYSIS!

We recommend as accessories (optional):

Test drops to determine the iron content in water (Item No.: 8056300922834)

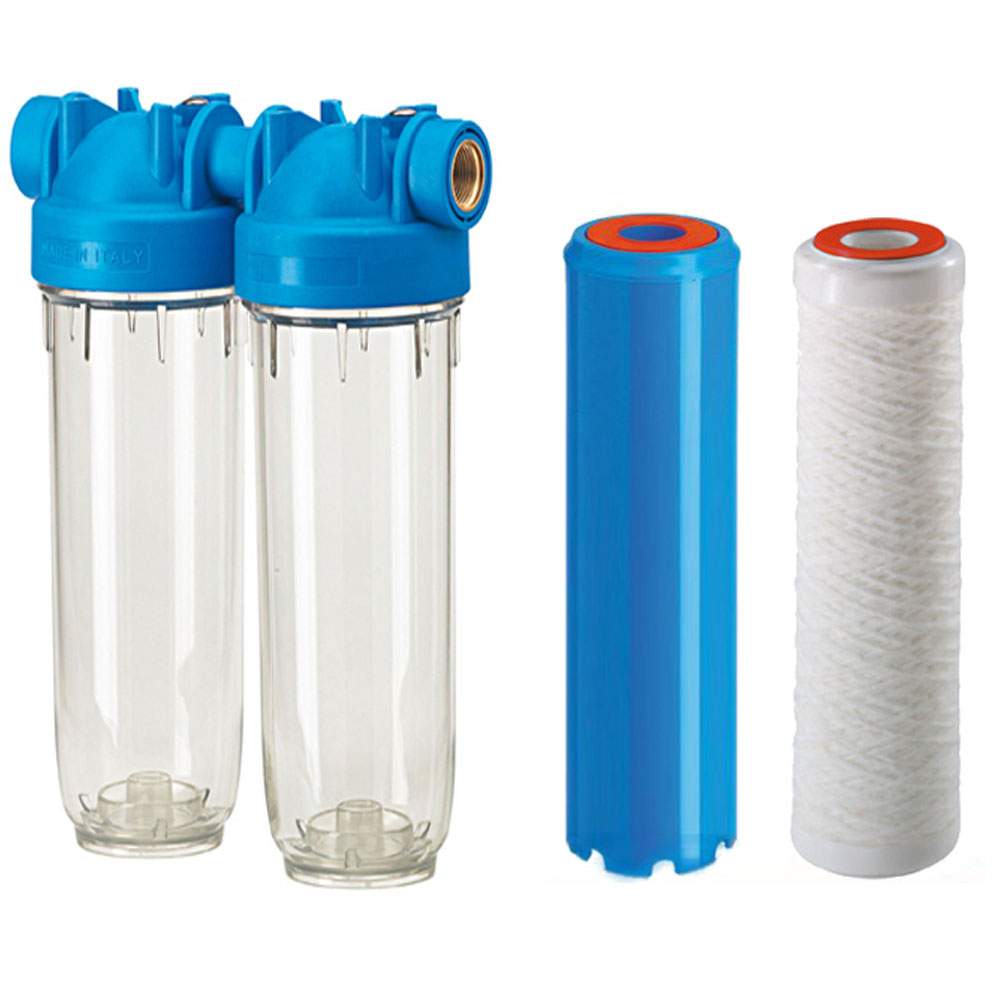

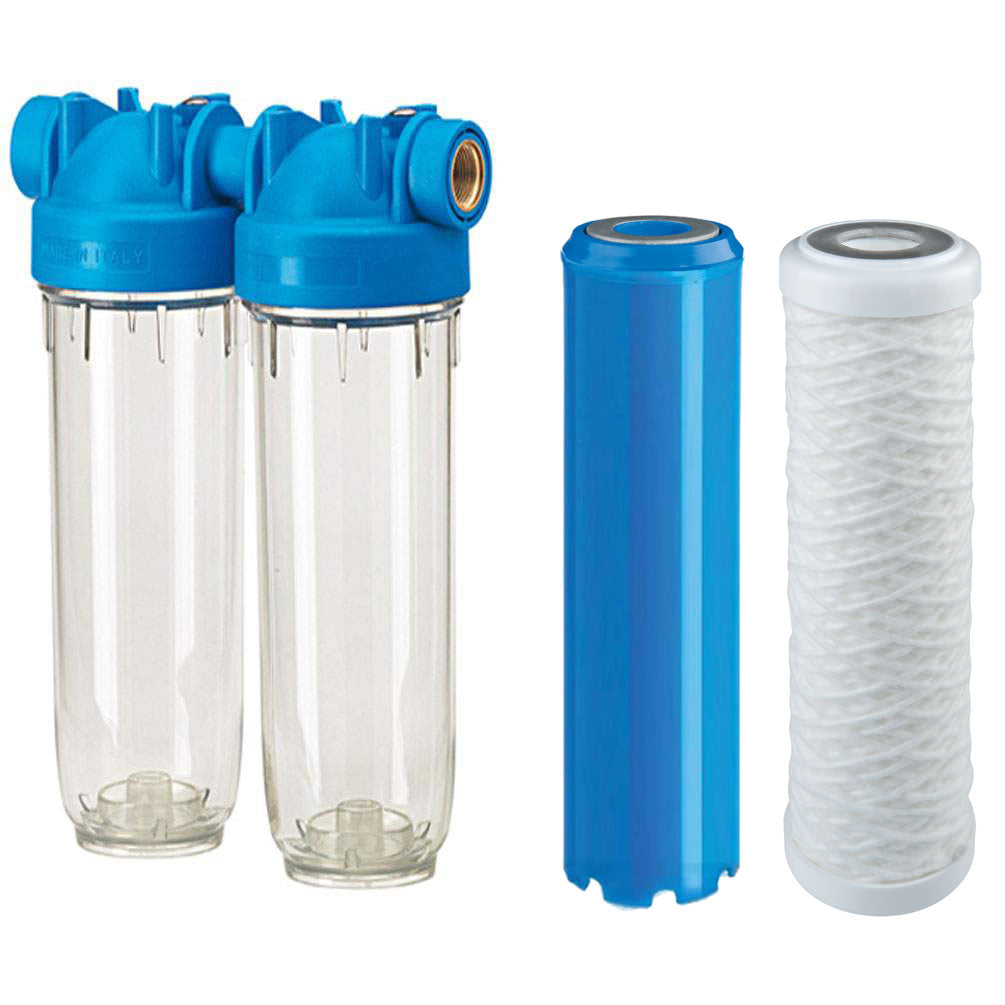

You will receive 1 x DOUBLE filter housing, 2 x filter cartridges, 1 x wall holder W2 and 1 x housing key packed in a box.
