DP 10 QA AF 1/4" Filter Housing - Anion Exchange Resin Anti-Nitrate

DP 10 QA AF 1/4" IN TS

Quality filter housing made of polypropylene incl. filter cartridge QA 10 AF anionic resin for reducing nitrate in water IN /OUT 1/4"

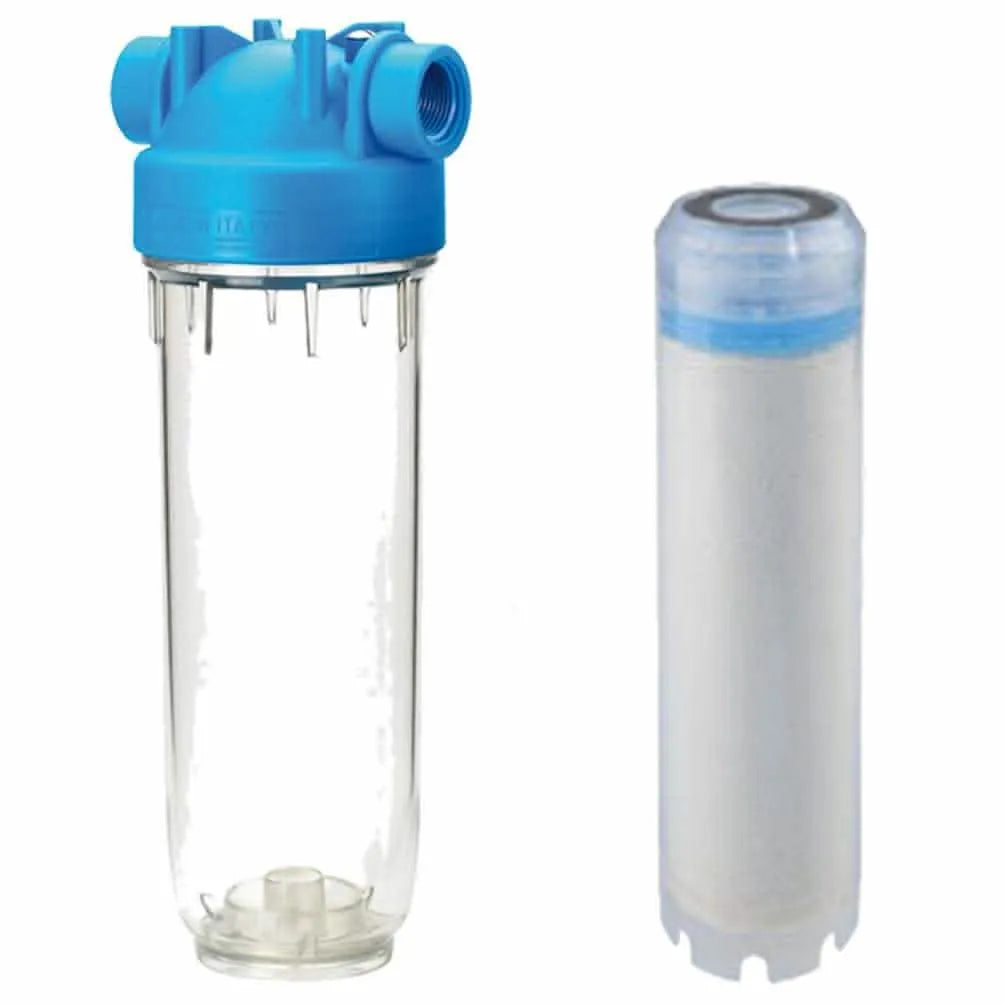

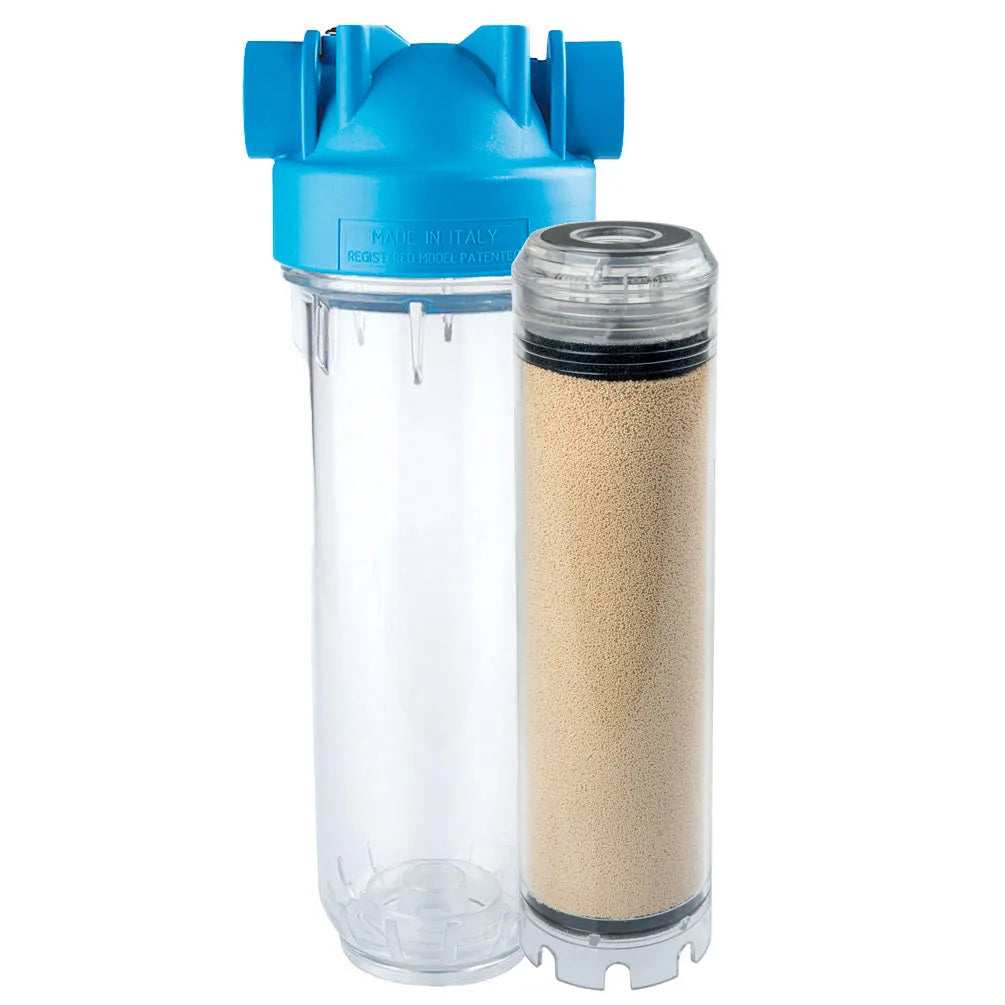

You receive a 10" quality filter housing made of polypropylene incl. QA 10 AF anti-nitrate filter cartridge .

The filter cartridge contains highly anionic resin (resin) for nitrate reduction.

It is made of non-toxic materials and is therefore suitable for drinking water production.

When used as a drinking water filter, we recommend installing an activated carbon filter downstream, e.g.

PCB Art. no. 4260303250106 or PLA Art. no. 4260303250298

10” filter housing:

Height 325 Width 122 Depth 107 mm
1/4" connection with plastic threaded bushings
Maximum pressure: 8.0 Bar (116 PSI)
Maximum temperature: 45 degrees Celsius

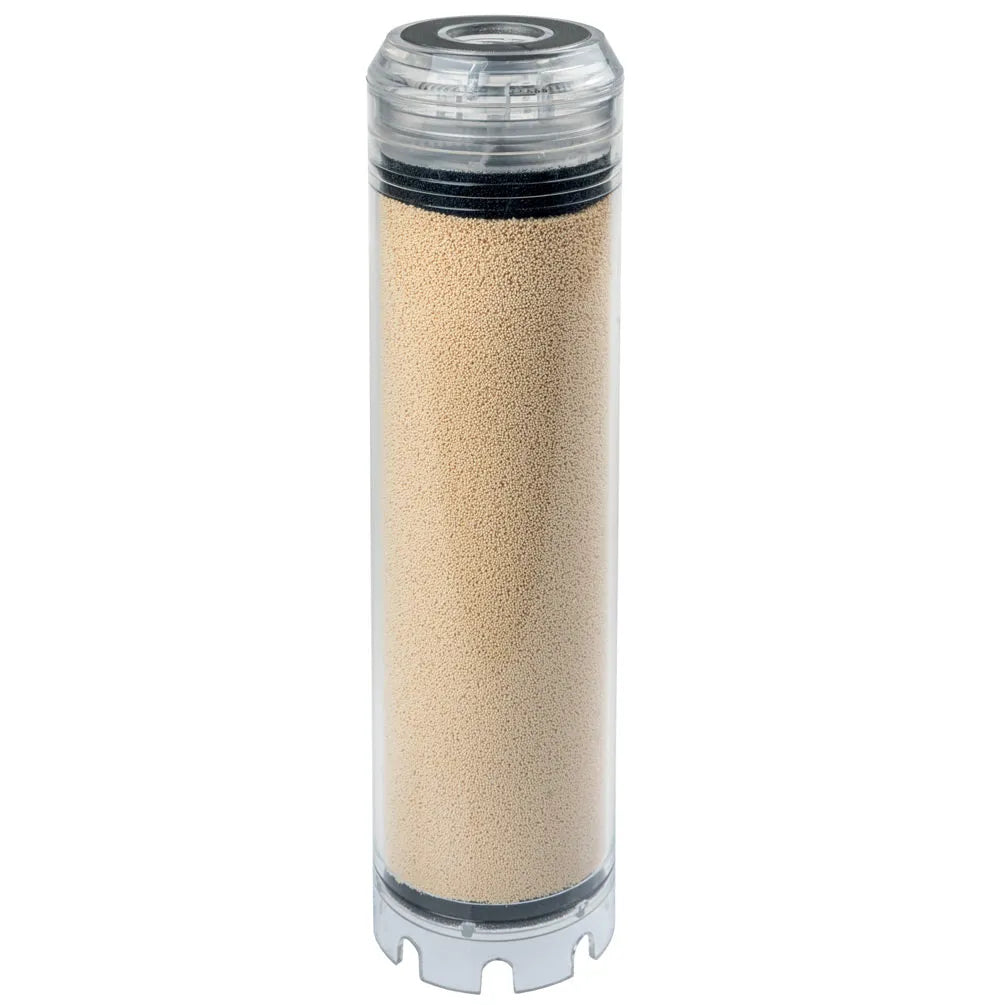

Replacement filter:

QA 10 AF SX TS: (Article no.: 8021647051851)

Length: 252 mm Width: 72 mm Head opening: 28 mm
Maximum temperature: 45 degrees Celsius
Maximum concentration NaNO3 = 200 ppm
Maximum concentration NO4 = 200 - 300 ppm
Recommended flow rate: 50 l/h

Service life: up to 6 months or 3.000 l, depending on water hardness and flow rate. The cartridge must be replaced when channels have formed in the resin and the water no longer flows through the filter medium.

We recommend the following optional accessories:

1 x S1-DP key for DP housing (Art.-N° 4260303250489)

and

1 x W1 - wall bracket for SINGLE filter housing (Art.-N° 4260303250267)

You receive a filter housing, 1 filter cartridge, 1 W1 - wall bracket and 1 S1-DP key packed in a box.
