DP BIG M 20 DUO 1" in TS High-Performance Double Filter Housing 1" Thread

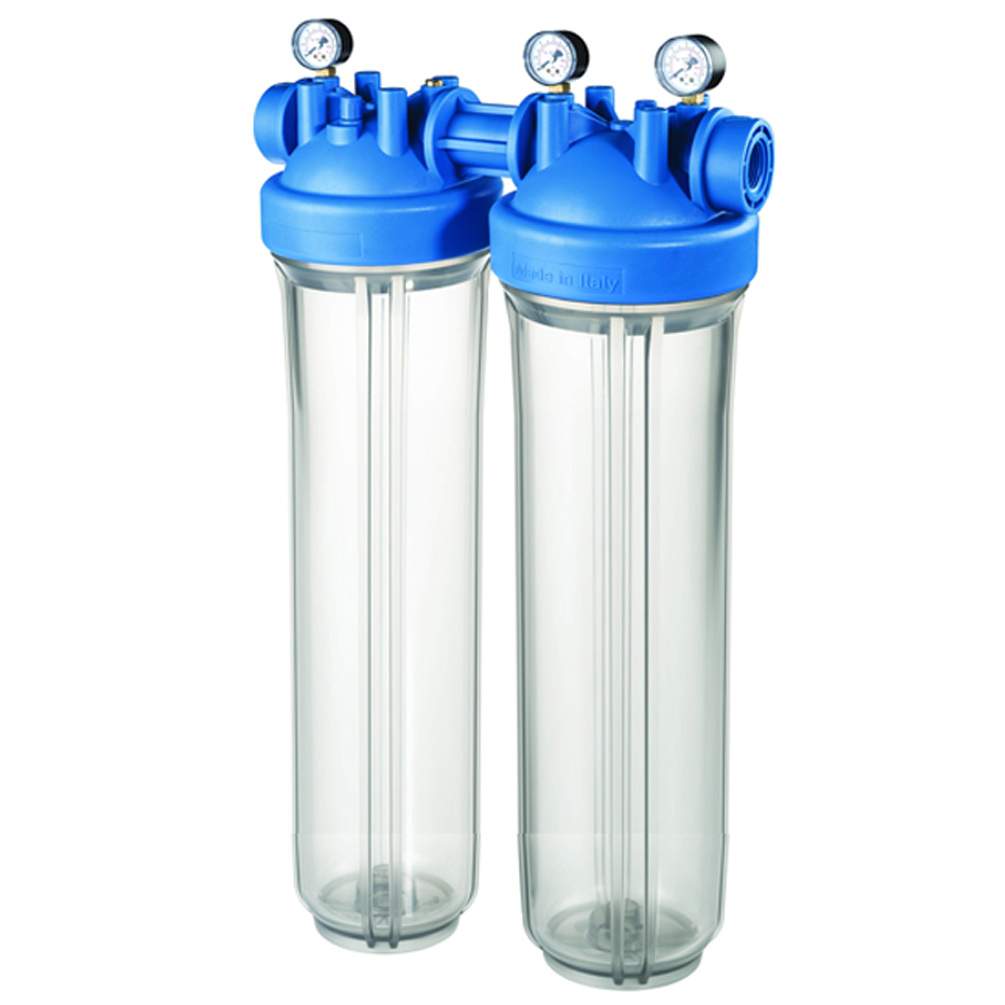

DP BIG M 20 DUO 1" IN TS 20" double high-performance filter housing made of polypropylene with three pressure gauges - IN/OUT 1"

You will receive a 20" double high-performance filter housing made of polypropylene with three pressure gauges.

You can order the filters separately in the shop!

Use: For high-performance applications in water filtration as well as industrial applications, filtration and treatment of drinking water, well water, domestic water, waste water, serves to protect fittings, boilers, pumps, water tanks and other technical systems as well as the pipelines.

Technical use of the water filters: Water purification, water softening, nitrate removal, iron removal, demineralization, filtering of oils and flavors, organic substances, insecticides, solvents, limescale and chlorine removal, etc.

20" BIG filter housing with three pressure gauges
Height 682 Width 390 Depth 185 mm
1" connection with plastic threaded bushings
Maximum pressure: 8,3 Bar (120 PSI)
Maximum temperature: 45 degrees Celsius
Pressure gauge: radial type, 0-12 bar (0-170 psi)

Suitable only for BIG 20" water filter cartridges.

Find the matching filter cartridges in our shop and save on shipping costs!

Areas of application:

Water treatment
Well construction
Building services
Chemical industry
Pharmaceutical industry
Cosmetics industry
Surface treatment
Film and photo industry
Beverage and food industry
Electronics industry
Paint and coatings industry
Petrochemicals
Laboratory technology

You will receive a BIG DOUBLE filter housing 20" packaged in a box.
