DP BIG SM 20 TRIO 1"IN TS high performance filter housing 1 inch thread pressure gauge

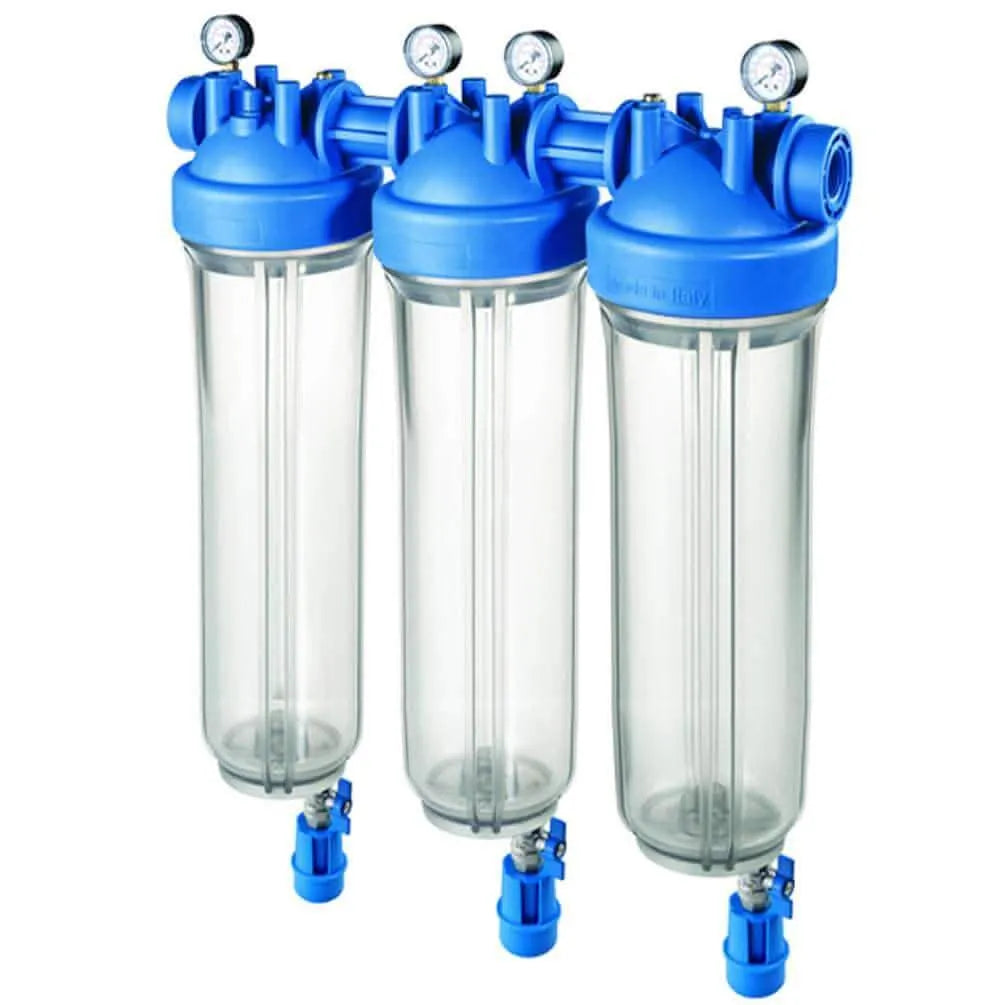

You will receive one 20" inch TRIPLE high performance polypropylene filter housing with 3 drain cocks and 4 pressure gauges.

You can order the matching filters separately in the shop!

Use: For high-performance water filtration applications as well as industrial applications, filtration and treatment of drinking water, well water, domestic water, dirty water, serves to protect fittings, boilers, pumps, water tanks and other technical systems as well as pipelines.

Technical use of the water filters: Water purification, water softening, nitrate removal, iron removal, demineralization, filtering of oils and aromas, organic substances, insecticides, solvents, lime and chlorine removal, etc.

20" INCH BIG TRIPLE FILTER HOUSING:
Height 825 Width 590 Depth 185 mm
1" inch connection with plastic threaded sockets
Maximum pressure: 8.3 bar (120 PSI)
Maximum temperature: 45 degrees Celsius
Monometer: radial type, pressure range 0-12 bar, 0-170 psi.

Only suitable for BIG 20" inch water filter cartridges.

Find the right filter cartridges in our shop and save shipping costs!
