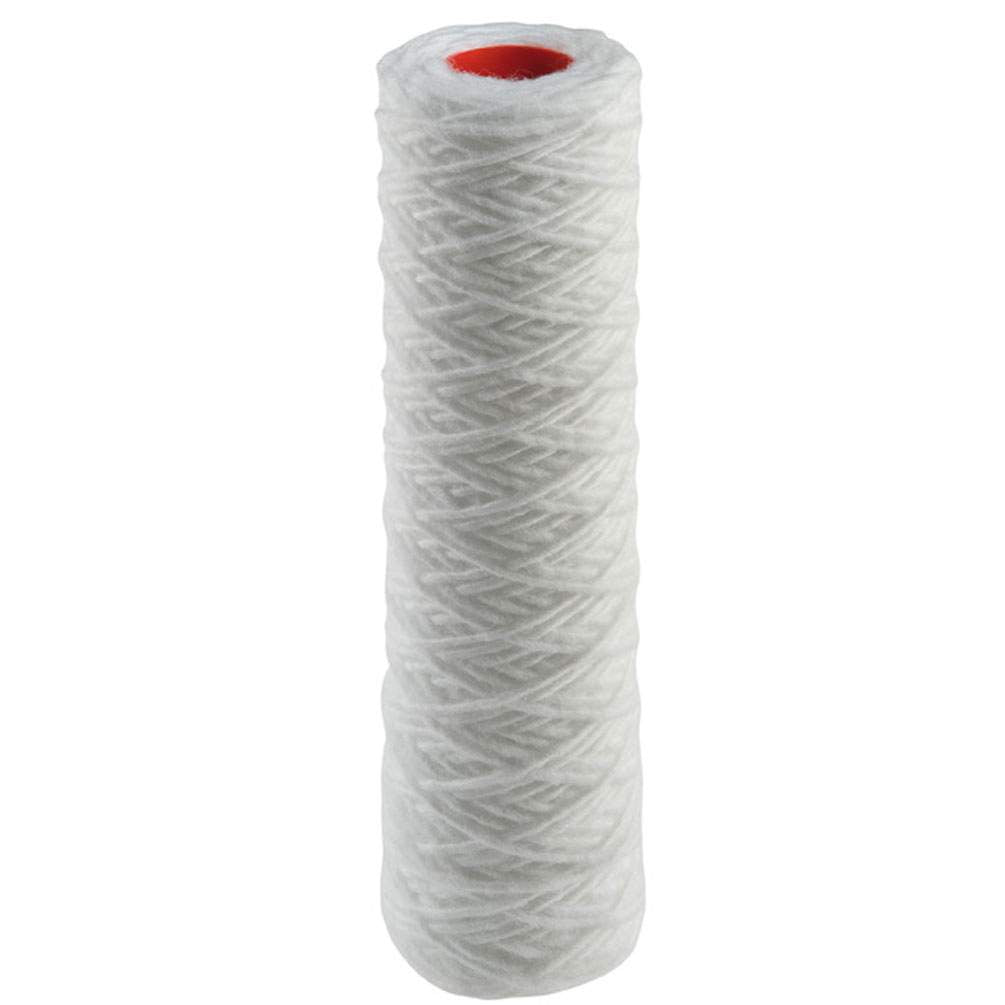

FA 10 HOT SX - Sediment Spin-On Filter Hot Water

FA 10 HOT SX sediment wound filter for hot water applications up to 80 °C in various filtration ratings

Wound filters are high-performance sediment filters for removing sand, dust, rust, and other particles. The exceptionally uniform winding of the polypropylene thread during production results in a compact cartridge with a large effective filter surface area.

Matching 10" filter housings can be found in our shop.

Technical data

10" filter cartridge
Suitable for all standard 10" housings
Suitable for drinking water applications
Dimensions: 250 x 61 x 28 mm (length x width x head opening)
Operating pressure: maximum 8.0 bar
Temperature range: 4 - 80 °C
Filter material: wound polypropylene
Filtration rating: 100 mcr - 5 mcr depending on selection
Recommended maximum flow rate: 2000 l/h
Service life: up to 6 months (depending on water quality and application)

Areas of use:

Pre-filter
Appliance protection filter
Drinking water filter

You will receive a 10" filter cartridge in the selected filtration rating.
