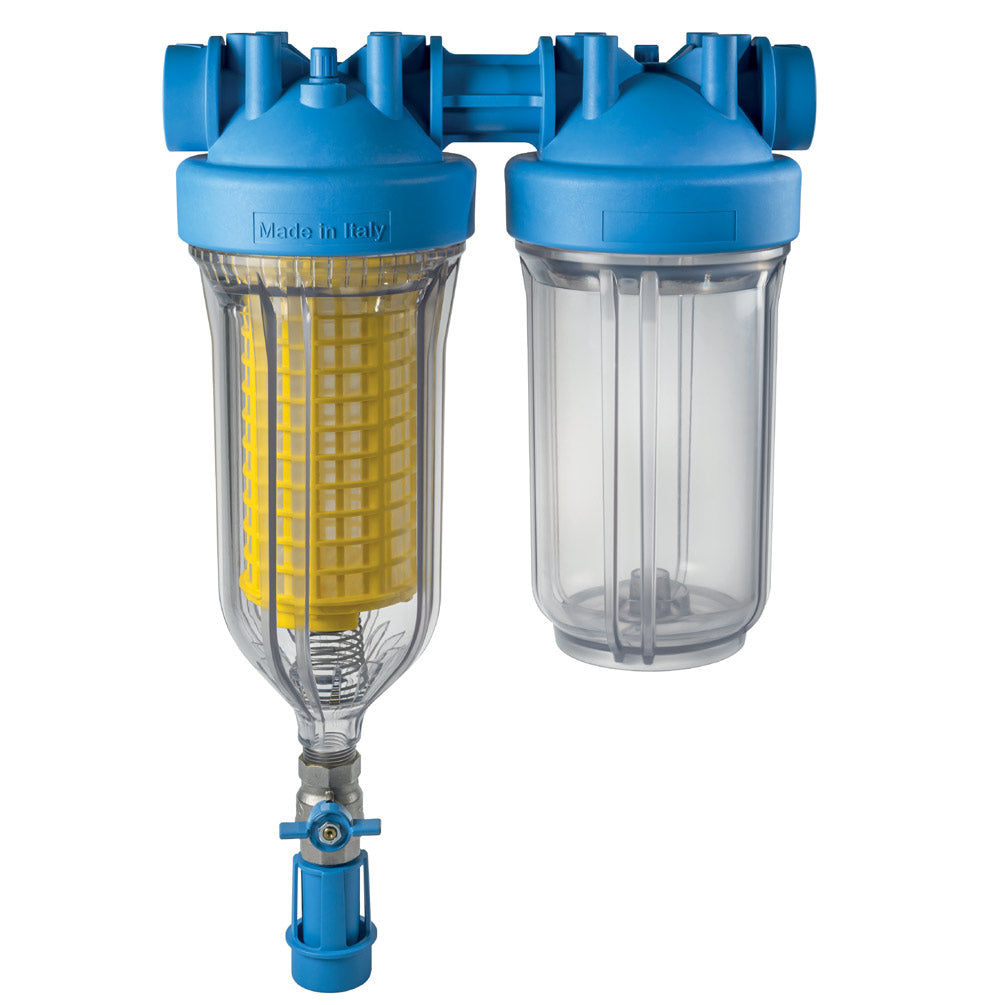

HYDRA BIG 10 DUO 1" RLH 90 mcr IN

HYDRA BIG 10" DUO RLH 90 mcr 1" inch - Two-stage filter

DOUBLE filter housing - The housing head is made in one piece! "PATENTED"

Innovative backwash system with spring-loaded filter cartridge. When the flush valve is opened, the pressure drop pulls the cartridge downward, cleaning the inside as well. A minimum pressure of 1.8 bar is required to ensure backwashing.

In the next stage, cartridges from the BIG 10" (DOE) series are used to further refine the filtration or continue the water treatment.

Includes hose connector and drain funnel with backflow prevention according to UNI EN 1717-11/2002

This works through the Self-Cleaning/Backwash pre-filter with 50 microns and with a final water treatment by a second filter cartridge of your choice , these you can order separately in our shop.

One of the best POINT OF ENTRY home filtration systems on the market, filter your drinking water without pressure loss.

The HYDRA BIG DUO water filter was developed to provide high water flow with low pressure loss. The 2-stage water treatment system is designed to save space and is easy to install.

The HYDRA BIG DUO water filter has a drain funnel/backflow preventer to protect the drinking water supply.

Use: Filtration and treatment of drinking water, well water, domestic water and wastewater, water tanks and other technical systems as well as pipelines.

Filtration:

1 x RLH - pre-filtration cartridge RLH: 90 MIC , filters sand and other particles larger than 90 microns
Service life: 12-24 months
Max. flow rate at approx. 3 bar pressure / 6000l/h.

as well as one additional 10" BIG filter cartridge of your choice.

Order these together in our shop and save on shipping costs.

Areas of application:

Water treatment
Well construction
Building services engineering

The filter system is originally packaged, with filter housing a housing wrench, a wall bracket, screws and an RLH 90 µm filter cartridge.
