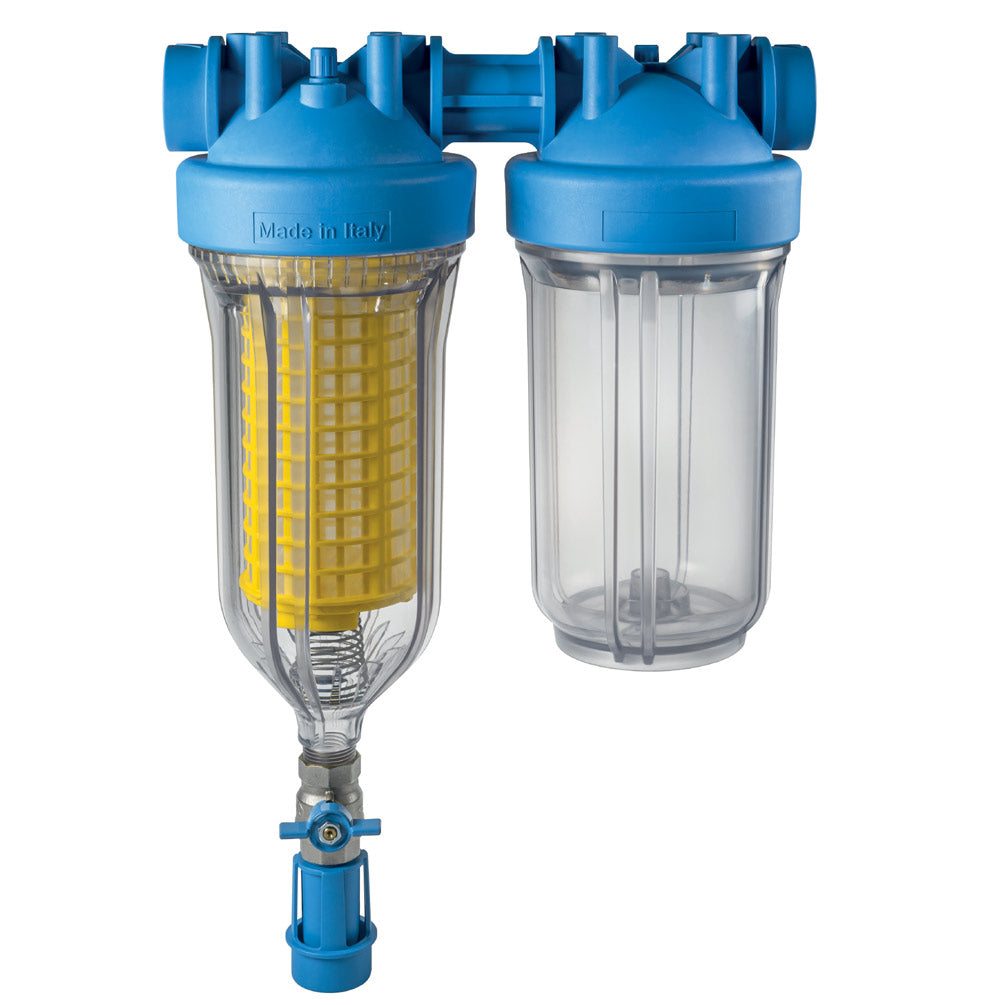

HYDRA BIG 10 DUO 1"1/2 RLH 90 mcr IN

HYDRA BIG 10 DUO RLH 90 mcr 1" 1/2 inch - Two-stage filter

DUAL filter housing - The housing head is made from a single cast! "PATENTED"

Innovative backwash system with spring-loaded filter cartridge: when the flush valve is opened, the pressure drop pulls the cartridge downward, cleaning it from the inside as well. A minimum pressure of 1.8 bar is required to ensure backwashing.

In the next stage, cartridges from the BIG 10" (DOE) series are used to further refine the filtration or continue the water treatment.

Includes hose connector and drain funnel with backflow preventer according to UNI EN 1717-11/2002

This works through the Self-Cleaning/Backwash pre-filter with 90 microns and a final water treatment through a second filter cartridge of your choice , which you can order separately in our shop.

One of the best POINT OF ENTRY home filtration systems on the market, filter your drinking water without pressure loss.

The HYDRA BIG DUO water filter was developed to deliver high water flow with low pressure loss. The 2-stage water treatment system is designed to save space and is easy to install.

The HYDRA BIG DUO water filter features a drain funnel/backflow preventer to protect the drinking water supply.

Use: Filtration and treatment of drinking water, well water, domestic water and wastewater, water tanks and other technical systems as well as pipelines.

Filtration:

1 x RLH - pre-filtration cartridge RLH: 90 MCR , filters sand and other particles larger than 90 microns
Service life: 12-24 months
Max. flow rate at approx. 3 bar pressure / 15000l/h.

as well as another 10" BIG filter cartridge of your choice.

Order it with your purchase in our shop and save on shipping costs.

Areas of use:

Water treatment
Well construction
Building services engineering

The filter system is delivered in its original packaging, with filter housing a housing wrench, a wall bracket, screws, and an RLH 90 µm filter cartridge.
