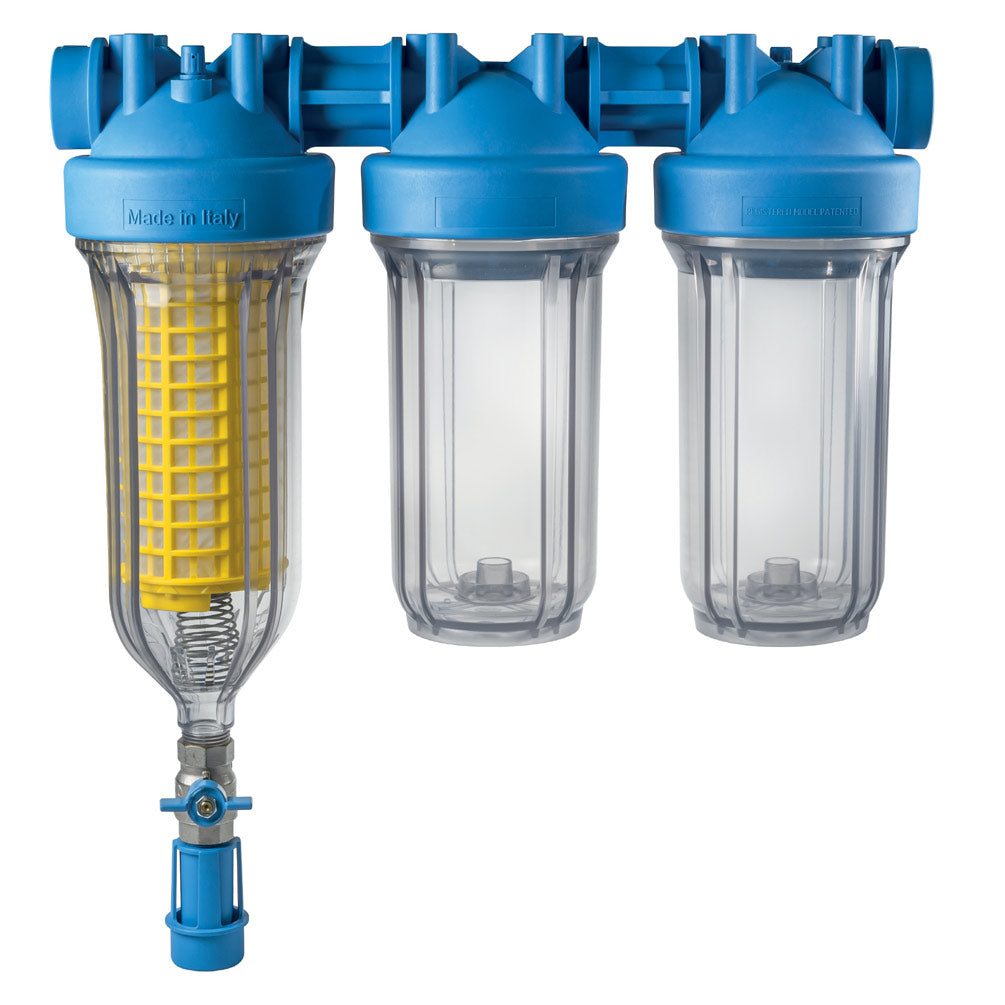

HYDRA BIG TRIO 10" RLH 90 mcr OT

HYDRA BIG TRIO 10" inch - three-stage filter

TRIPLE filter housing - The housing head is one-piece! "PATENTED"

Innovative backwash system with spring-mounted filter cartridge: when the flush valve is opened, the pressure drop pulls the cartridge downward and thereby cleans it internally as well. A minimum pressure of 1.8 bar is required to ensure the backwash.

In the next two stages, cartridges of the BIG 10" (DOE) series are installed to further refine the filtration or continue the water treatment.

Includes hose tail and drain funnel with backflow protection according to UNI EN 1717-11/2002

This operates via the Self-Cleaning/Backwash prefilter with 90 micron and with final water treatment through a second and third filter cartridge of your choice , which you can order separately in our shop.

One of the best point-of-entry home filter systems on the market — filter your drinking water without pressure loss.

The HYDRA BIG TRIO water filter was developed to provide high water flow with low pressure loss. The 3-stage water treatment system is very space-saving and easy to install.

The HYDRA BIG TRIO water filter features a drain funnel/backflow preventer to protect the drinking water supply.

Use: Filtration and treatment of drinking water, well water, household and wastewater, water tanks and other technical systems as well as piping.

Filtration:

1 x RLH - prefiltration cartridge RLH: 90 MIC , filters sand and other particles larger than 90 micron
Lifespan: 12-24 months
Max. flow rate at approx. 3 bar pressure / 6000l/h.

as well as two additional 10" BIG filter cartridges of your choice.

Order them with your purchase in our shop and save on shipping costs.

The filter system is factory packed, including the filter housing, a housing wrench, a wall bracket, screws and one RLH 90 µm filter cartridge.
