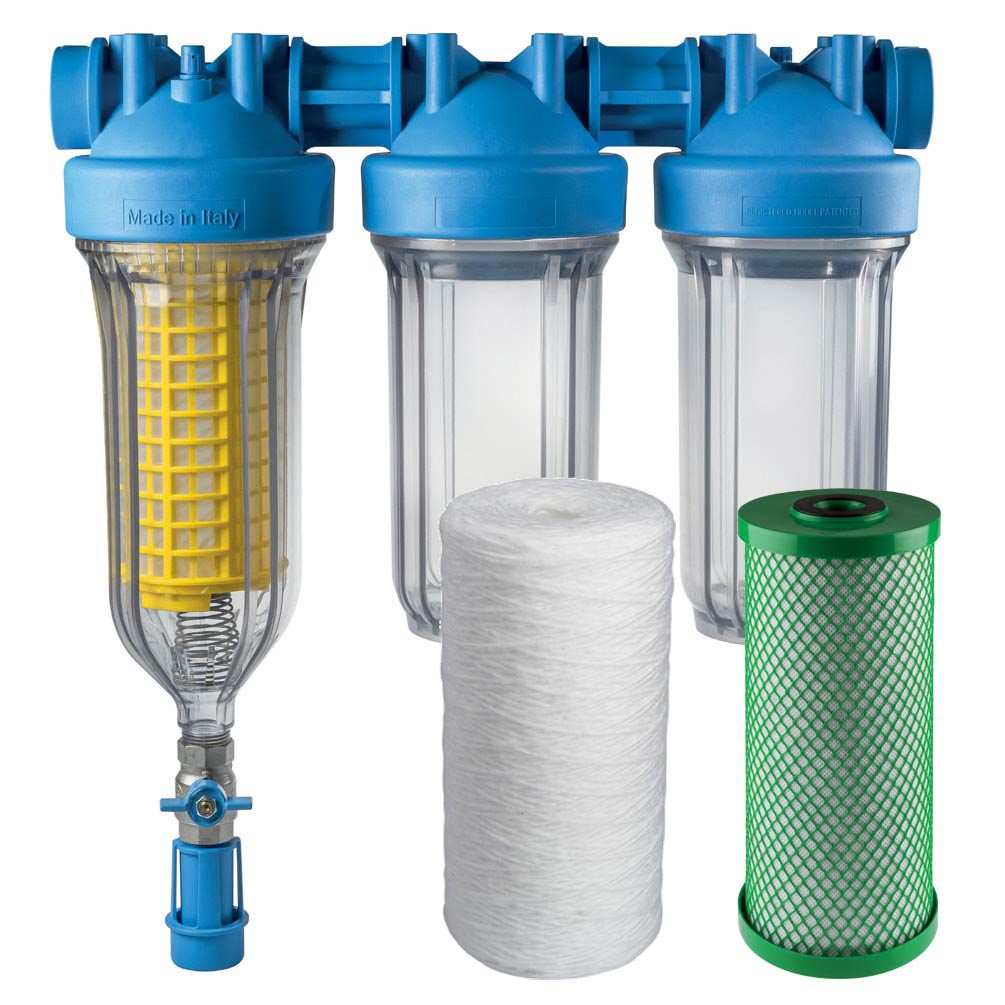

HYDRA BIG TRIO Rainmaster 1” - Household Water Filter

POWERFUL LARGE TRIPLE filter housing with one-piece head

Innovative backwash system with spring-mounted filter cartridge. When the flush valve is opened, the pressure drop pulls the cartridge downward, cleaning it internally as well. A minimum pressure of 1.8 bar is required to ensure backflushing.

Including hose nozzle and drain funnel with backflow protection according to UNI EN 1717-11/2002

Innovative backwash system with spring-mounted filter cartridge. When the flush valve is opened, the pressure drop pulls the cartridge downward, cleaning the interior as well. A minimum pressure of 1.8 bar is required to ensure backflushing.

This filtration system treats water at high concentration cost-effectively and filters out contaminants as well as fine particles from the water.

This works through the self-cleaning/backwash pre-filter with 90 microns, an FA pre-filter with 25 microns, and a final water treatment using the CB CARBON cartridge.

The CTO 10 BIG 10 mcr - Activated Carbon Block consists of compressed activated carbon and filters contaminants from the water such as chlorine, organic pollutants, light hydrocarbons, solvents, pesticides, insecticides, oils and flavors, taste impairments, odor impairments, fine particles (rust, lime flakes, sand, flakes), and suspended solids.


The filter cleans the water down to 10 microns.



Usage, Scope, Dimensions:

The 3-stage water purification system is designed to be very space-saving and easy to install.

The HYDRA TRIO household water filter features a drain funnel/backflow preventer to protect the drinking water supply.

The HYDRA TRIO household water filter is used for the filtration and treatment of drinking water, household water, and wastewater. It protects fittings, pumps, water tanks, other technical equipment, and pipelines.


Technical Data

10" HYDRA BIG TRIO filter housing
Dimensions: 515 x 590 x 185 mm (HxWxD)
Operating pressure: maximum 8.3 bar
Temperature range: 4 - 45 °C
Suitable for all standard 10" BIG cartridges with flat gasket
Suitable for drinking water applications



The individual filtration stages:

1 x RLH 90mcr HYDRA BIG - Sediment Filter Polyester Mesh
Self-Cleaning Pre-Filtration Cartridge – RLH: 90 MIC
filters sand and other particles larger than 90 microns
Lifespan: approx. 12-24 months (depending on water quality and flow rate)


1 x FA 10 Big SX 25 Micron - Sediment Wound Filter Polypropylene

Wound filters are powerful sediment filters designed to remove sand, dust, rust, and other particles. The particularly uniform winding of the polypropylene thread during production results in a compact cartridge with a large effective filter surface.
Lifespan: approx. 6 months (depending on water quality and flow rate)


1 x CTO 10 BIG 10 mcr - Activated Carbon Block
filters chlorine, organic contaminants, light hydrocarbons, solvents, pesticides, oils and flavors, taste impairments, odor impairments, fine particles (rust, lime flakes, sand, flakes) and suspended solids.
Lifespan: approx. 6 months (depending on water quality and flow rate)


The filter system is in its original packaging, including the filter housing, a housing key, a wall mount, screws, and three filter cartridges.



EAN: 4260303252612
