Home / Products / HYDRA Ironmaster 3/4” - iron filter well water filter house water filter
Quick View
Quick View
€116,00
€127,75
-9%
Inclusive taxes. Shipment will be charged at checkout.
Show all data Link chevron
List Description
Settings TECHNICAL DATA
Information AREAS OF APPLICATION & INFORMATION

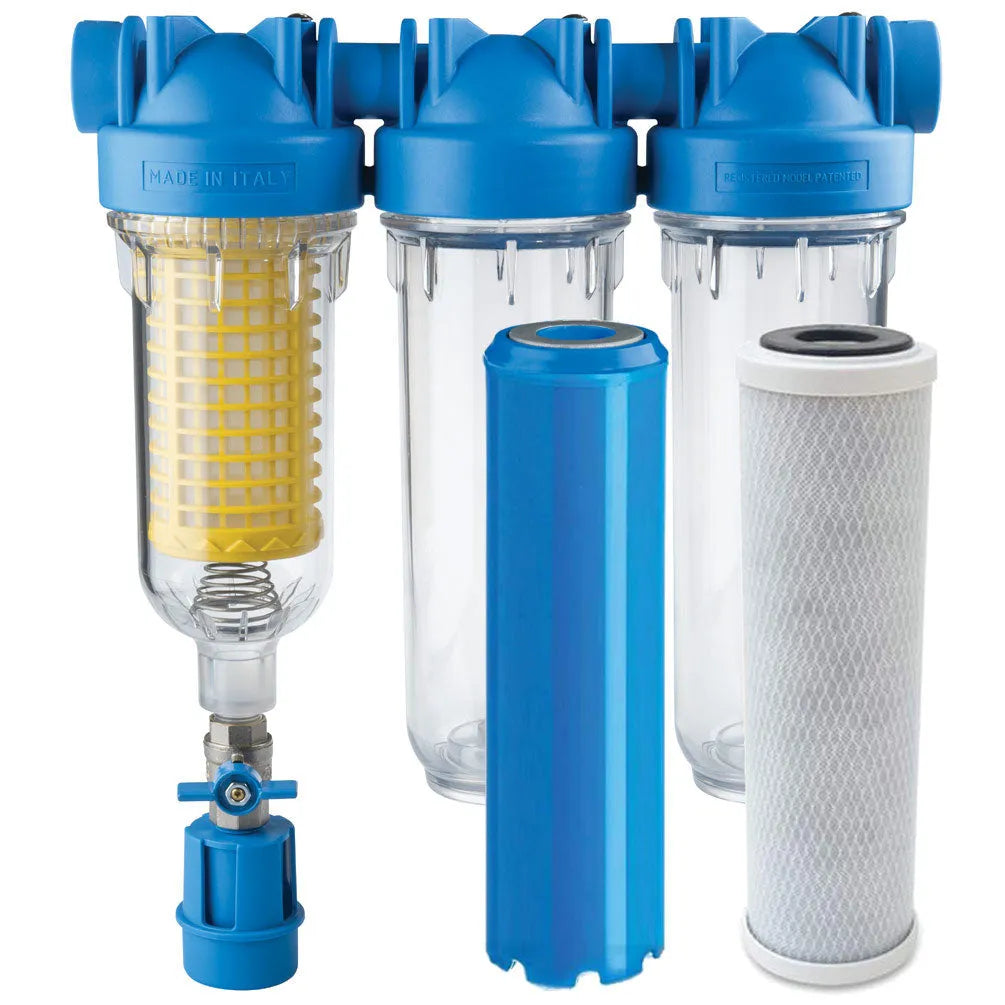

HYDRA Ironmaster 3/4” - Well Water Filter House Water Filter Iron Water Filter


TRIPLE filter housing with one-piece head

Innovative backwash system with spring-loaded filter cartridge. When the flush valve is opened, the cartridge is pulled down by the pressure drop, thus cleaning the inside as well. A minimum pressure of 1.8 bar is necessary to ensure backwashing.

Includes hose nipple and drain funnel with backflow protection according to UNI EN 1717-11/2002

Iron filter for filtration of dissolved iron in water and prevents brown deposits on sanitary ceramics. This iron water filter reduces the iron content in the water and filters out pollutants and fine particles.

This is achieved through the Self-Cleaning/Backwash pre-filter with 90 microns and with final water treatment through the PFEX iron filter and the PCB activated carbon block.

The PFEX iron filter cartridge reduces the iron concentration, hydrogen sulfide content, metallic taste and odor of the water, and helps normalize the water's pH value. The filter uses hydrogen sulfide to oxidize Fe² to Fe³.

The PCB carbon block activated carbon filter consists of compressed activated carbon and filters out pollutants from the water such as chlorine, organic pollutants, light hydrocarbons, solvents, pesticides, insecticides, oils and flavors, taste impairments, odor impairments, fine particles (rust, lime flakes, sand, scales) and suspended matter.



Reduction of:

Iron up to a maximum value of 4.0 mg/l usable

Manganese up to a maximum value of 0.1 mg/l usable

Sulfite up to 0.9 mg/l

Oxide up to 4.0mg/l

Chloride up to 4.8 mg/l

Silicates up to 35.0 mg/l



The filter cleans the water to 10 microns.



Use, Scope, Dimensions:

The 3-stage water treatment system is very space-saving and easy to install.

The Hydra Trio well water filter has a drain funnel/backflow protection to protect the drinking water supply.

/It is used for the filtration and treatment of drinking water, well water, house water, and dirty water, to protect fittings, boilers, pumps, water tanks, washing machines, and other technical systems as well as pipelines.



Filter dimensions:
Height 390 mm Width 336 mm Depth 107 mm

IN / OUT connection made of brass in 3/4" inch:
Maximum pressure: 8.0 bar
Minimum pressure: 1.8 bar
Maximum temperature: 45 °C



The individual filtration stages:

1 x RLH - pre-filtration cartridge - (EAN: 8021647070418)
Self-cleaning pre-filtration cartridge - RLH: 90 MIC
filters sand and other particles larger than 90 microns
Lifespan: approx. 12-24 months (depending on water quality and flow rate)



1 x PFEX Iron Iron Filter (EAN: 4260303250830)
reduces the iron concentration, hydrogen sulfide content, metallic taste, odor of the water, and helps normalize the pH value of the water.
Lifespan: approx. 6 months or approx. 3,000 ltr. (depending on iron (max. 4 mg/l) and manganese values (max. 0.1 mg/l) and flow rate)

Note: With the PFEX iron removal filters, it may happen that granule dust initially escapes, which is caused by transport. Let the water run until it is clear. Please also note the maximum values. If necessary, carry out a water analysis before installing the filter to know the iron value of the water.


1 x PCB activated carbon block (EAN: 4260303250106)
filters chlorine, org. pollutants, light hydrocarbons, solvents, pesticides, oils and flavors, taste impairments, odor impairments, fine particles (rust, lime flakes, sand, scales) and suspended matter.
Lifespan: approx. 6 months (depending on water quality and flow rate)


The filter system is original packaged, with filter housing, a housing key, a wall bracket, screws, and three filter cartridges.
