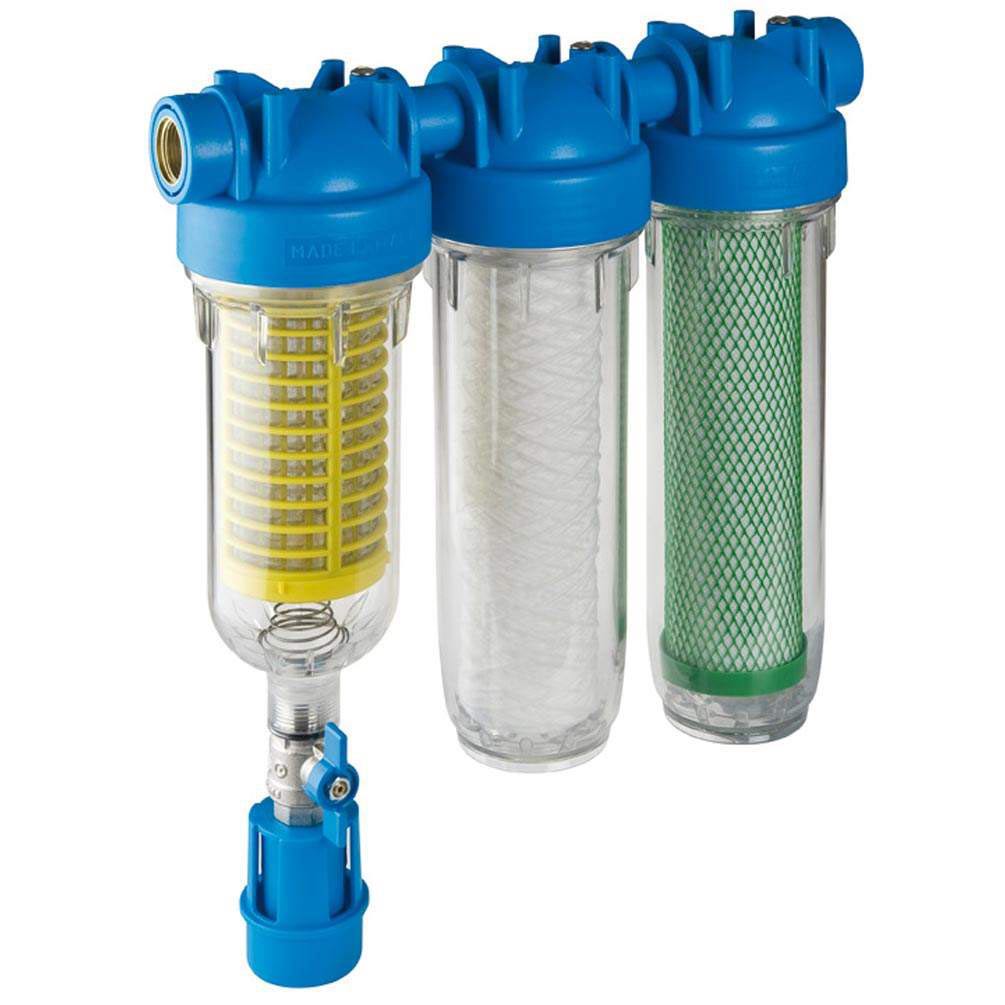

HYDRA Rainmaster Trio RLH CB/EC 1" House Water Filter Well Water Filter

DUPLEX filter housing with a one-piece head

Innovative backwashing system with spring-loaded filter cartridge. When the flushing valve is opened, the pressure drop pulls the cartridge down, thus cleaning the inside as well. A minimum pressure of 1.8 bar is required to ensure backwashing.

Including hose nozzle and drain funnel with backflow protection according to UNI EN 1717-11/2002


This filtration system prepares the water in high concentration cost-effectively and filters out pollutants as well as fine particles from the water.

This works through the self-cleaning/backwash pre-filter with 90 microns, a pre-filter with 25 microns, and a final water treatment CB CARBON cartridge.

The CB carbon block activated carbon filter is made of pressed activated carbon and filters out contaminants from the water such as chlorine, organic pollutants, light hydrocarbons, solvents, pesticides, insecticides, oils and flavors, taste impairments, odor impairments, fine particles (rust, lime flakes, sand, scales) and suspended matter.



The filter cleans the water to 10 microns.



Usage, Scope, Dimensions:

The 3-stage water treatment system is designed to be very space-saving and easy to install.

The HYDRA Rainmaster TRIO well water filter features a drainage funnel/backflow protection to safeguard the drinking water supply.

The well water filter can produce clear water and makes the use of well water in the household possible.

It is used for the filtration and treatment of drinking water, well water, household water, wastewater, and serves to protect fittings, boilers, pumps, water tanks, washing machines, and other technical systems as well as the pipelines.

Max. flow rate at approx. 3 bar pressure / 4500l/h.



Filtermaße:

Height 390 mm Width 336 mm Depth 107 mm

IN / OUT connection made of brass in 1" inch:

Maximum pressure: 8.0 bar

Minimal pressure: 1.8 bar

Maximum temperature: 45 °C



The individual filtration stages:

1 x RLH - Pre-filter Cartridge (Item No. 8021647070418)

Self-cleaning pre-filter cartridge RLH with plastic mesh 90 MIC, filters sand and other particles larger than 90 microns.

Lifespan: approx. 12-24 months



1 x FA filtration cartridge 25 microns (Item No. 4260303250120)

filters fine particles (sand, rust, flakes)

Lifetime: approx. 6 months (depending on water quality and flow rate)



1 x CB - CARBON Cartridge Activated Carbon 10 Micron (Item No. 4260303250106)

filters fine particles (rust, lime, sand, scales) as well as pollutants (pesticides, solvents, etc.), reduces chlorine (bad taste and odor)

Lifetime: approx. 6 months (depending on water quality and flow rate)



The filter system is original packaged, with filter housing, a housing key, a wall mount, screws, and filter cartridges.
