K-Matic is compatible with all products of the Hydra series, including Rainmaster, Ironmaster, and the DS S-models.
(Except for the products of the Hydra BIG and Hydra Hot series)

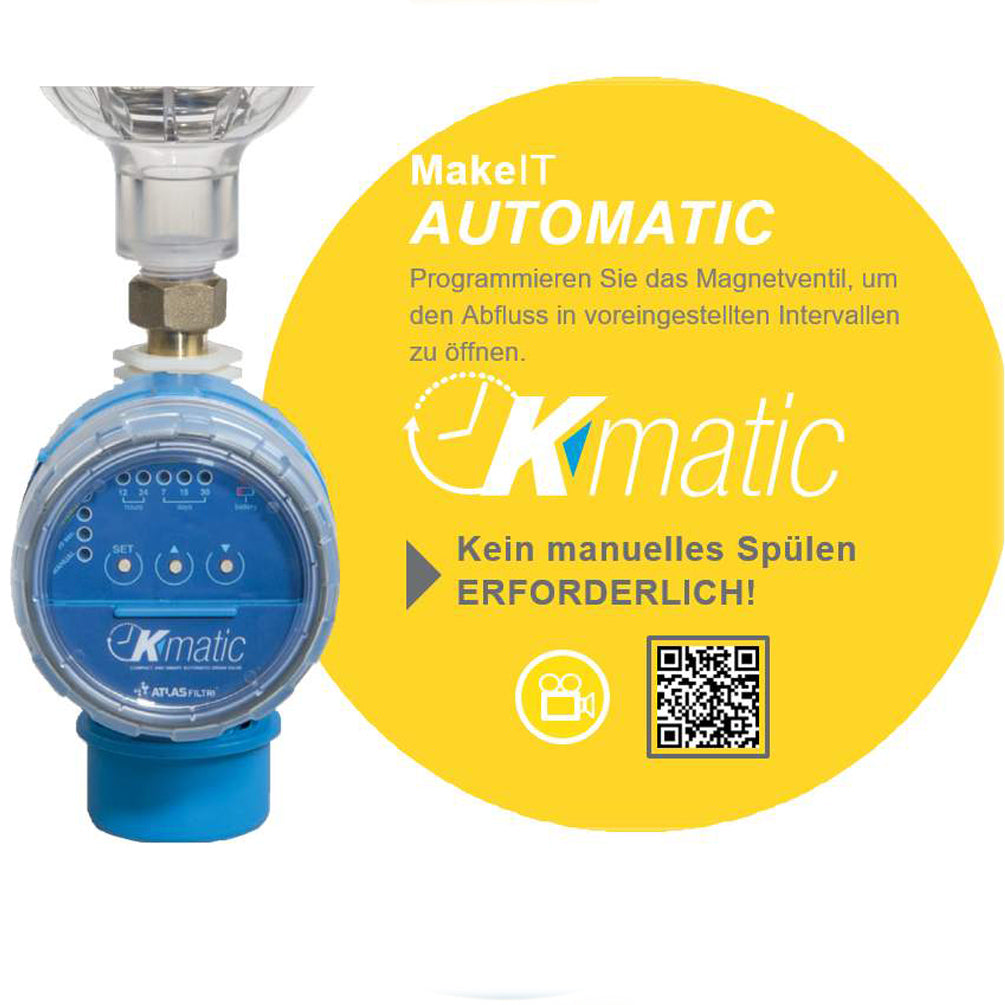

K-Matic is a time-controlled valve for filter cleaning of the Hydra series and DP S Mono series, so works the cleaning automated.
It allows for the programming of cleaning intervals and the duration of each individual rinse to ensure optimal operation of the entire system.
How does K-Matic work?

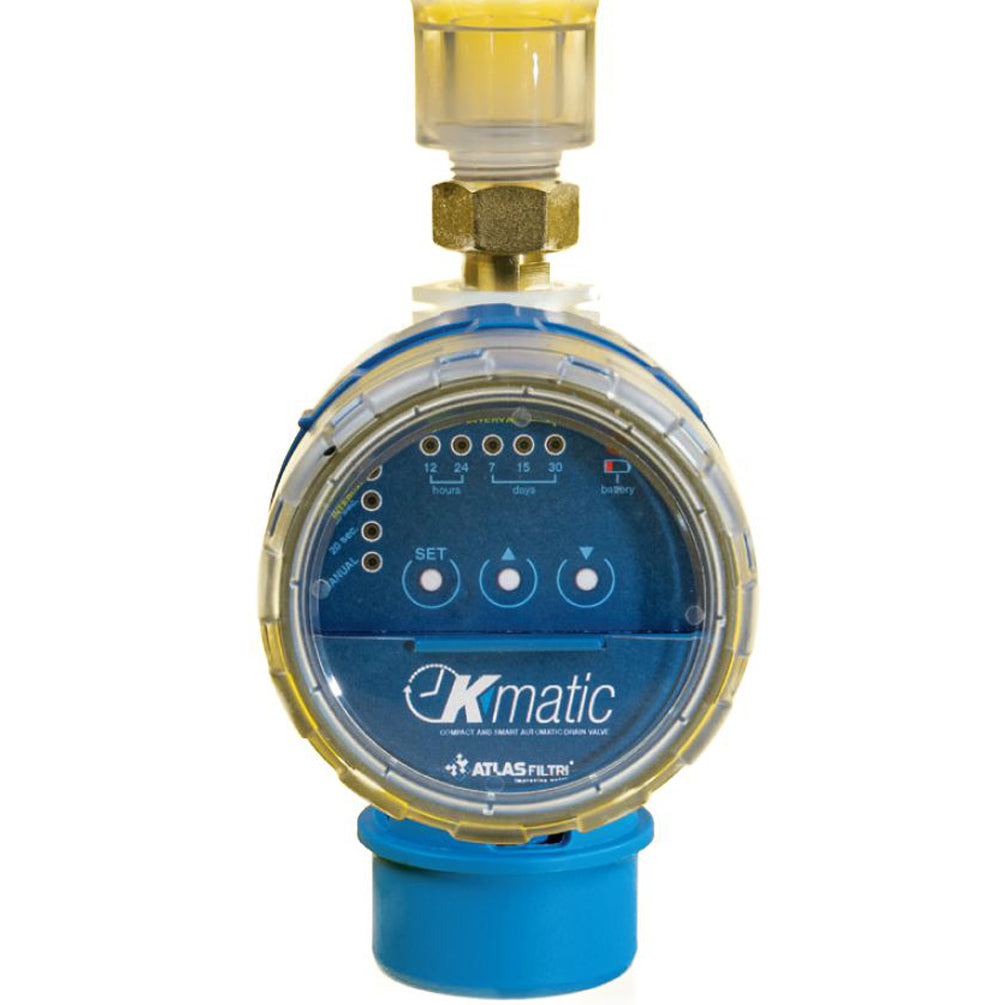

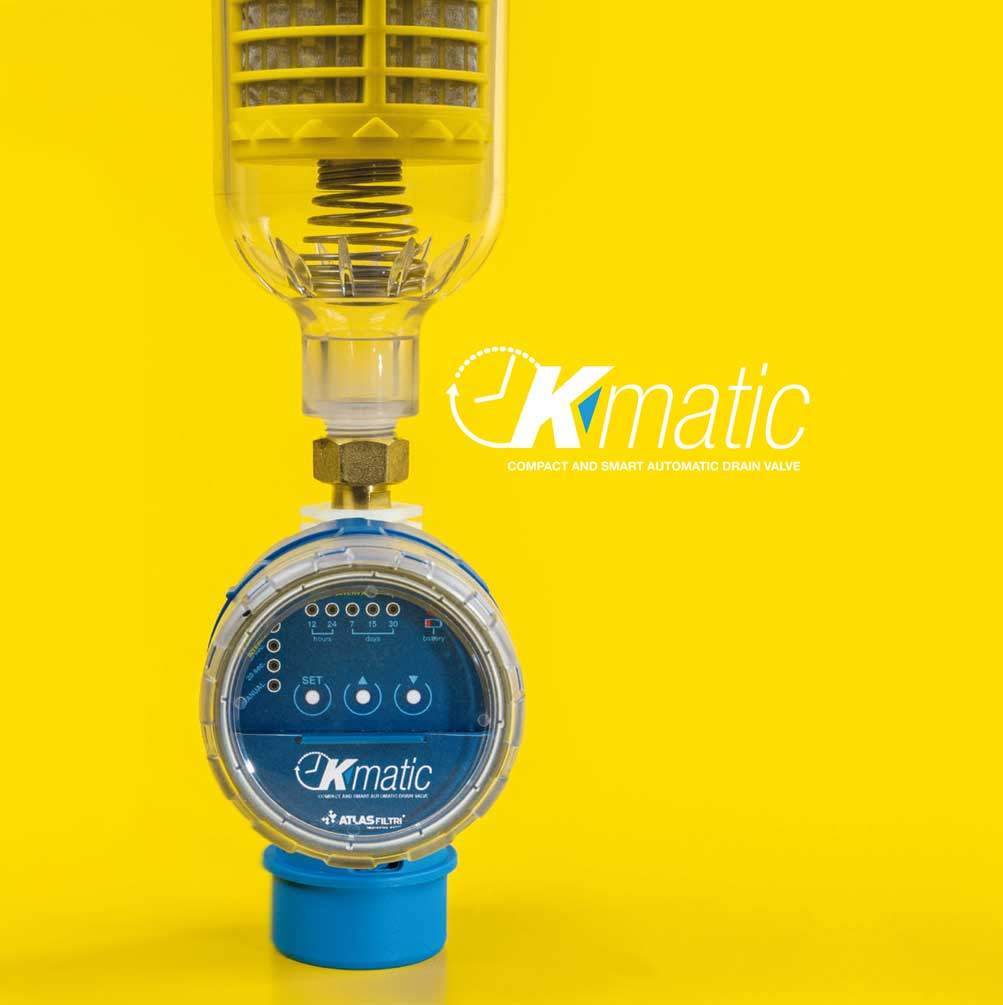

K-Matic is simple and compact and must be connected to the drain of the filter cup with the included brass swivel joint.

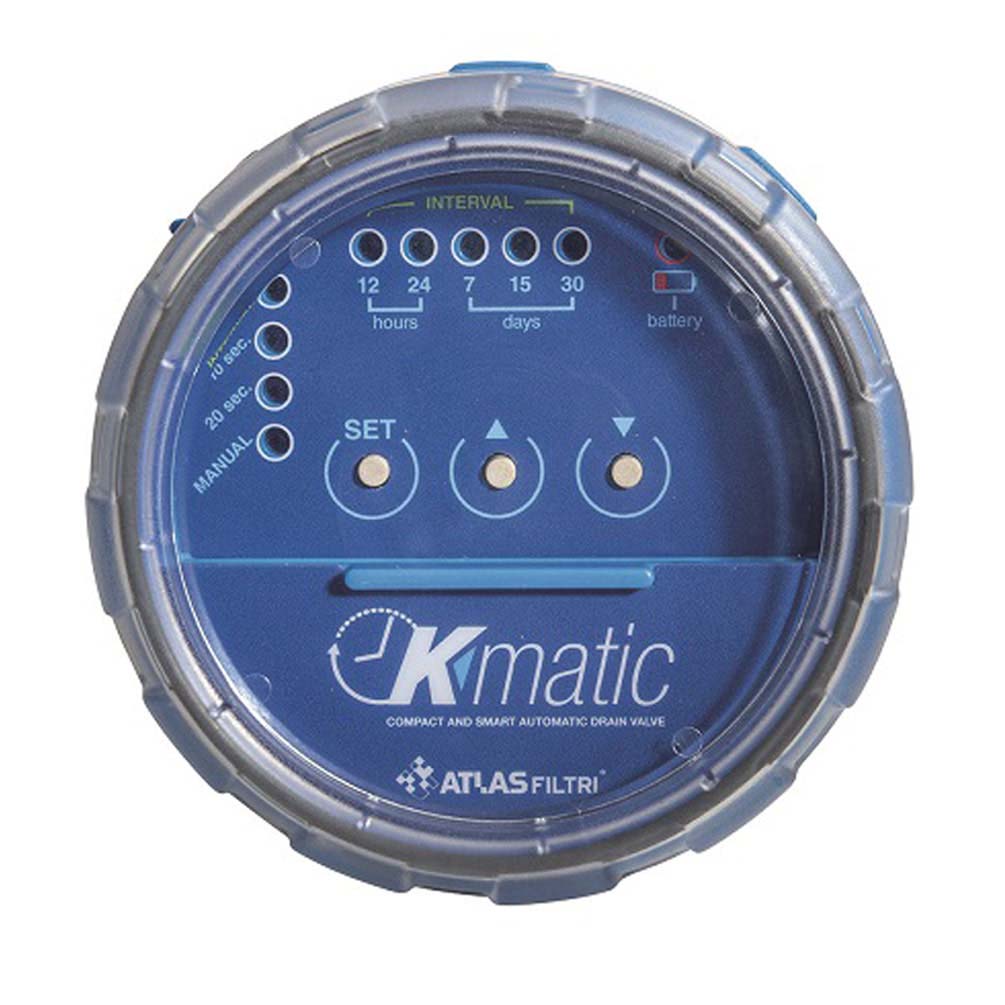

The K-Matic valve features an intuitive, easily programmable, and well-readable settings menu. It requires no power: a simple 9V battery is sufficient for the valve to operate and get the job done for you.
The safety stop function allows the valve to close in the event of a weak battery, and the manual flush function can help when excessive dirt requires additional cleaning.
What time interval should K-matic be set to?
The frequency of self-cleaning must be determined according to the quality of the source water, the type of contamination, and individual needs.
Water with many impurities requires more frequent and longer cleaning, whereas less polluted water requires less frequent and shorter cleaning.
In automatic mode, the intervals between two valve openings and the duration of each individual opening can be programmed with the following options:
Interval settings - 12h, 24h, 7, 15, 30 days
Duration of cleaning - 10 or 20 seconds
After each opening of the valve, a second opening follows with a fixed duration of 3 seconds, which increases the effectiveness of the flushing.
It is compatible with all products of the Hydra series, including Rainmaster, Ironmaster, DS S-Models, (except for the products of the Hydra BIG and Hydra Hot series) kompatibel.
This solenoid valve can also be combined with all filters that are equipped with an outlet with a 1/2" BSPP M-thread connection.
