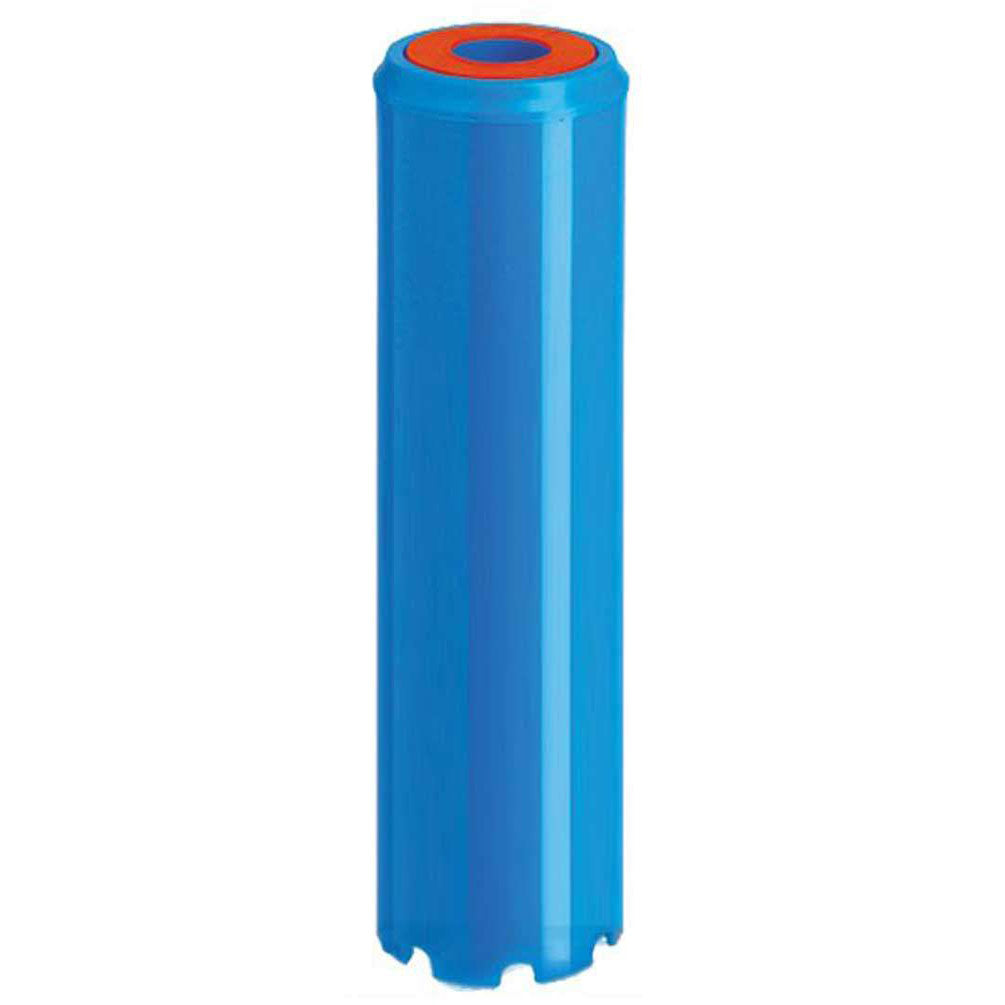

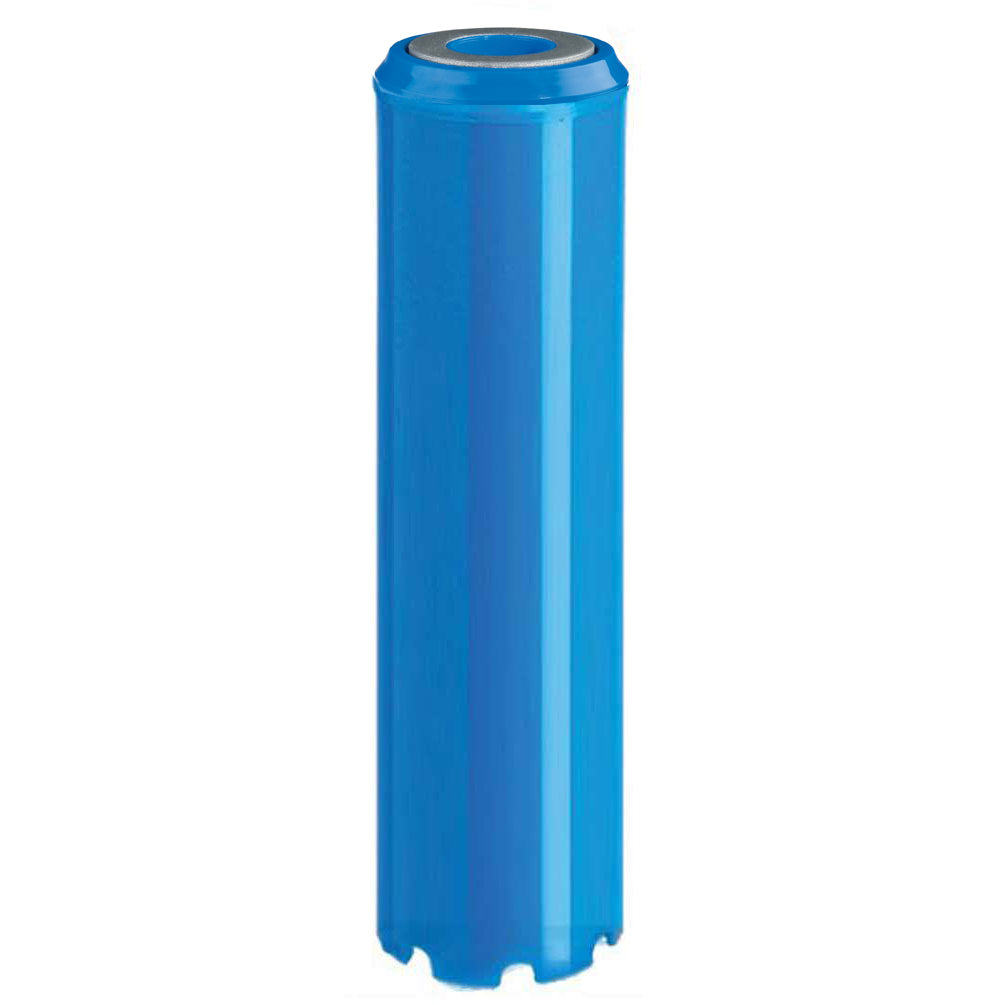

PFEX 10 SX IRON REMOVER - Iron filter cartridge is filled with filtering media to reduce
the iron concentration in the water
The iron filter cartridge lowers the iron concentration, reduces the
Hydrogen sulfide content, the metallic taste, and the smell of the
Wassers.
A iron water filter is used to remove the iron and manganese content from the water.
remove. These contaminants can be found in some water supply systems
occurrences and can cause various problems, such as discoloration of the
Deposits in pipes and appliances as well as an unpleasant taste
or smell of the water. The immediate consequence of a high iron content in
Water is the formation of rust edges on sanitary facilities (bathtubs,
Spülbecken).
The filter cartridge is made with a mixture of pyrolusite and different
filled with granulated quartz sand.
The dissolved FE² in water is converted to FE³, removing it from the water. The
Iron filter uses hydrogen sulfide to oxidize Fe² to Fe³.
Reduction of:
Eisen
up to a maximum value of 4.0 mg/l usable
Mangan
usable up to a maximum value of 0.1 mg/l
Sulfite (up to 0.9 mg/l)
Oxide (up to 4.0mg/l)
Chloride (up to 4.8 mg/l)
Silicates (up to 35.0 mg/l)
The iron filter helps to normalize the pH value of the water.
- Iron Ion Treatment
- Odor disturbances and fine particles
- in addition, the filter removes light oils
To extend the lifespan, it is recommended to place a
Install sediment cartridge of series FA or FAG.
The iron filter cartridge for reducing iron concentration
- Iron Ion Treatment
- Odor disturbances and fine particles
- in addition, the filter removes light oils
- Lifespan: approx. 6 months or approx. 3,000 l (depending on the iron- (max.
4 mg/l) and manganese levels (max. 0.1 mg/l) and the flow rate)
- Maximum temperature: up to 45 °C
- Recommended flow rate at approx. 3 bar / 1000l/h.
!With the iron filter cartridges, it may happen that initially granulate dust
exit that occurs due to transport. Let the water sit for as long
run until the water is clear. If necessary, only then install the following filters.
danach ein!
PLEASE NOTE THE MAXIMUM VALUES. IF NECESSARY, CONDUCT A WATER ANALYSIS!
Test drops for determining the iron content in water (optional - Item No.:
8056300922834
