Senior plus 3p sx ts - single filter housing
EAN: 8021647157157
€37,75
€38,75
€42,75
€39,90
€35,75
€37,75
Inclusive taxes. Shipment will be charged at checkout.
Connection Size
3/4"IT
1"IT
1/2"IT
Variant
Default
Sanic
Connection Size
Variant
Shipping Information
FREE SHIPPING FROM 80,-
within Germany
Description
TECHNICAL DATA
AREAS OF APPLICATION & INFORMATION

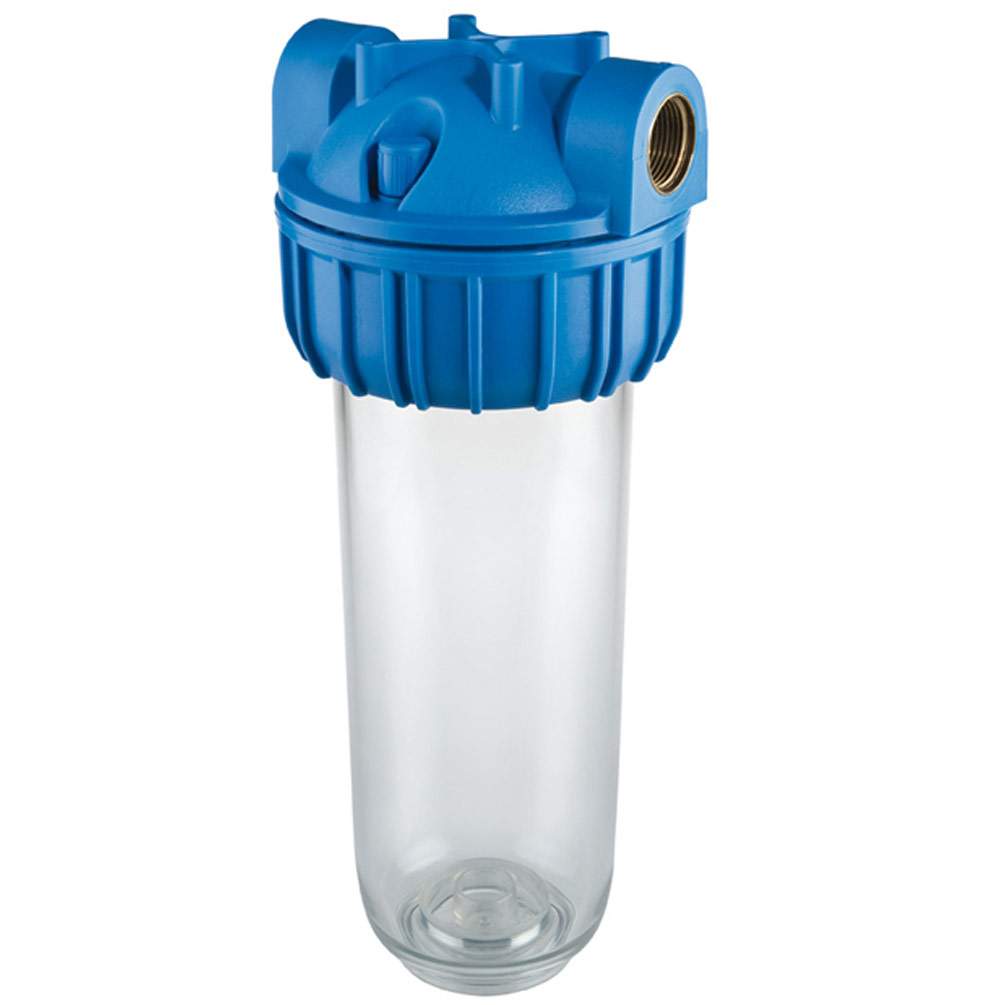

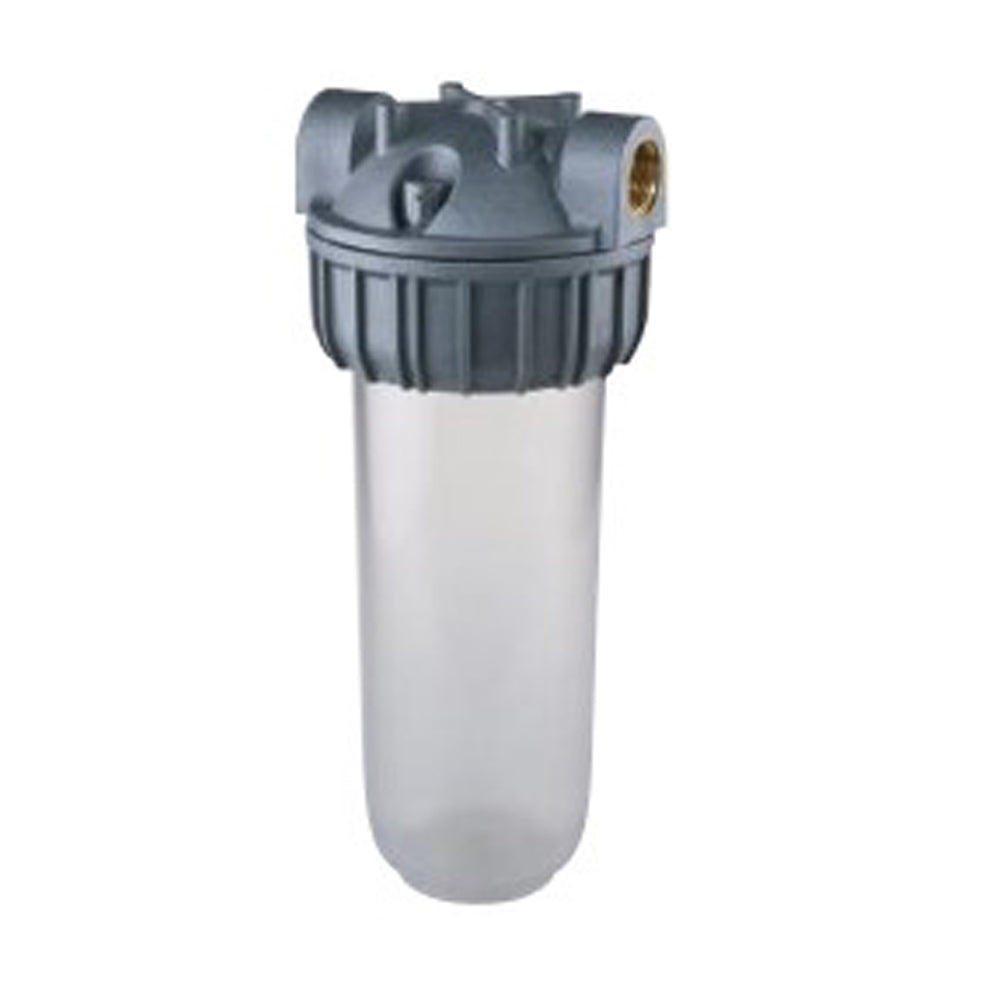

Senior Plus 3P SX TS single filter housing made of polypropylene in different connection sizes and variants
Compact and robust filter housing for filtration and treatment of drinking water, well water, domestic water, etc.
You can find suitable 10" SX filter cartridges in our shop.
We recommend the following accessories:
W1 - Wall bracket EAN 8021647102089
U1 - Housing key EAN 8021647098320
Technical data
10" filter housing
Suitable for all standard 10" cartridges with flat seals
Suitable for drinking water applications
Dimensions up to 3/4": 321 x 133 x 130 mm (HxWxD)
Dimensions 1": 321 x 145 x 130 mm (HxWxD)
Operating pressure: maximum 8.0 bar
Temperature range: 4 - 45 CC
Material selection
Housing head: reinforced polypropylene
Housing cup: PET
O-ring: EPDM
Vent valve: stainless steel, EPDM
Connection thread: CW 617 N brass
Areas of application:
Pre-filter
Device protection filter
Drinking water filter
You will receive a 10" filter housing in the selected connection size and variant.
